EML-20APA22
| Rated Torque (oz-in) | 2704 |
|---|---|
| Rated Power (Watts) | 2000 |
| Rated Speed (RPM) | 1000 |
| Max Speed (rpm) | 1500 |
| Rated Current (Arms) | 12 |
| Voltage | 220 VAC |
| Brake | No |
| Inertia (oz-in-sec2) | 0.7576 |
| Torque Constant KT (oz-in/A) | 236.9 |
| Resistance (ohms) | 0.56 |
| Inductance (mH) | 4.7 |
| Length (mm) | 253 |
| Weight (lbs) | 55.12 |
Interested in large quantity discount?
Product Information

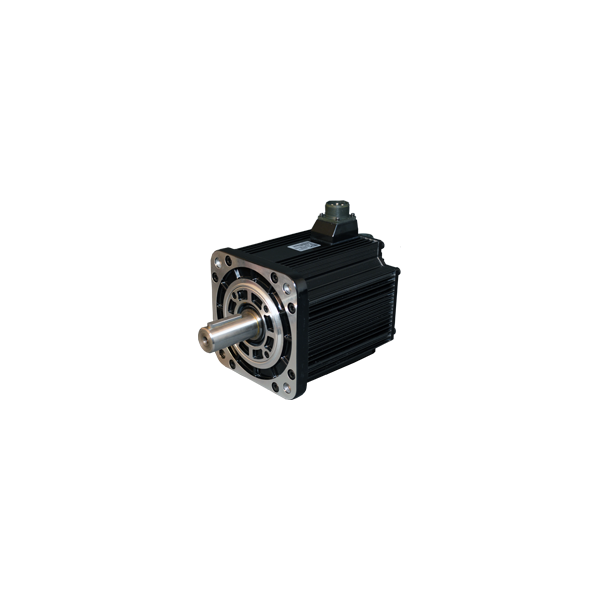

Our EML-20APA22 Servo Motor is a low-cost solution for industrial motion control applications. These rugged 130mm frame motors feature a sleek self-cooled enclosure and a medium-inertia design to maximize torque at high speeds for a power rating of 2,000 Watts. Additionally, the EML-20APA22 boasts peak torque of up to 8,114 oz-in, a max speed of 1,500 RPM, and comes equipped with a 2,500 PPR incremental encoder for motor feedback.
***Note: The EML-20APA22 motors are "LTSOH" (Limited to Stock on Hand) and will no longer be available after the current stock has been depleted. If you require assistance with selecting an alternate motor, please contact our applications engineers here.***
- 220VAC Medium-Inertia Servo Motor
- Peak Torque up to 300% of Rated Torque
- Peak Current up to 300% of Rated Current
- Maximum Speed of up to 1,500 RPM
- 2,500 PPR Incremental Encoder
- Self-Cooled Enclosure
- Power Rating of 2.0 kW
- Oil Seal
- Neodymium-Iron-Boron Magnets (NdFeB)
- CE Certified
