ACP-M-2IK6A-CUV
| Frame Size (mm) | 60 |
|---|---|
| Rated Torque (oz-in) | 4 |
| Rated Speed (RPM) | Variable |
| Starting Torque (oz-in) | 5 |
| Frequency (Hz) | 60 |
| Input Voltage (VAC) | 220 |
| Current (A) | 0.12 |
| Output Power (W) | 6 |
| Capacitor (uF / V) | 1/450 |
| Shaft Diameter (mm) | 6 |
| Weight (lbs) | 1.65 |
| Single or Three Phase | Single |
Interested in large quantity discount?
Product Information

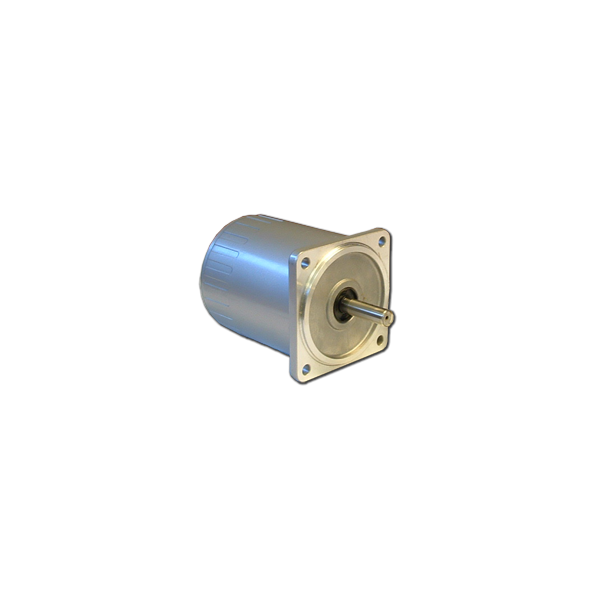

ACP-M-2xK6A motors provide users with a simple and cost-effective solution. ACP-M-2xK6A motors operate at 120/220VAC, so there is no need for a transformer; just hook up and go!
If your application requires speed control, these ACP-M-2RK6A-xUV variable speed gearmotors require an ACP-US-2I6A-xL Variable Speed Controller.
Note: ACP-M Induction Motors are LTSOH (Limited to Stock on Hand).
- Brushless Design for Long Life and Quiet Operation
- 120/220 VAC Input
- Single-Phase Operation
- Rated for Continuous Operation
- Self-Starting
- High Starting Torque for High Inertial Loads
- Direct Replacement for Some Panasonic AC Induction Motors
- Cost-Effective Solution
- Long Life and Highly Reliable
- Can be Customized for
- Maximum Speed
- Winding Current
- Shaft Options
- Cables and Connectors
- Clutch and/or Brake
- Terminal Box
- CE Certified
.png)
.png)
Mating Receptacle: ELR-06V
Mating Pin: SLM-41T-P1.3E
.png)
Single Phase Wiring
3 Phase Wiring
