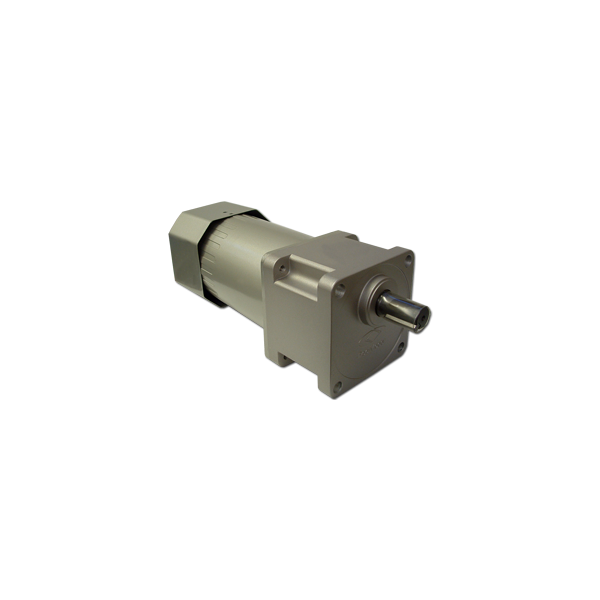

ACP-M-3IK15N-CU

ACP-M-3IK15N-AU and ACP-M-3IK15N-CU gearmotors provide users with a simple and cost-effective solution for constant speed applications. ACP-M-3IK15N-xU gearmotors operate at 110/220VAC, so there is no need for a transformer; just hook up and go! If your application requires speed control, the ACP-M-3RK15N-xUV and ACP-M-3IK15N-xUV are both excellent options and are available in 110/220VAC. The ACP-M-3RK15N-xUV variable speed motors contain an internal friction brake that allow the motor to reverse directions quicker than the standard ACP-M-3IK15N-xUV variable speed motors. This internal friction brake limits the ACP-M-3RK15N-xUV to a 30 minute duty cycle because of potential overheating issues. The Standard ACP-M-3IK15N-xUV variable speed motors do not share this same duty cycle restriction. Both of these variable speed gearmotors require an ACP-US-3I15A-xL AC Speed Controller to operate. PLEASE NOTE THAT GEARHEADS FOR THESE MOTORS ARE SOLD SEPERATELY. Please visit ACP-G-3N Gearheads for pricing and different gear ratio options.

Note: ACP-M Induction Gearmotors are LTSOH (Limited to Stock on Hand).

• Brushless Design for Long Life and Quiet Operation
• 110/220 VAC Input
• Single-Phase Operation
• Rated for Continuous Operation
• Self-Starting
• High Starting Torque for High Inertial Loads
• To be Mated with ACP-G-3N Gearheads
• Direct Replacement for Some Panasonic AC Induction Motors
• Cost-Effective Solution
• Long Life and Highly Reliable
• Can be Customized for
• Maximum Speed
• Winding Current
• Shaft Options
• Cables and Connectors
• Clutch and/or Brake
• Terminal Box
• CE Certified

Single Phase Wiring

3 Phase Wiring
