ACI-PMEJ075-4R4FAT

ACI-PMEJ075-4R4FAT

ACP-M-3IK15N-CU

ACP-M-3IK15N-CU

ACP-M-2IK6N-CUV

1pc Price:
$99.00
Quantity Discount
  • Buy 10 for $96.88 each and save 2%
  • Buy 25 for $93.18 each and save 6%
  • Buy 50 for $90.75 each and save 8%
  • Buy 100 for $89.41 each and save 10%
Inventory:
4
More Information
Input Voltage (VAC) 220
Frequency (Hz) 60
Motor Speed (rpm) Variable
Motor Diameter (in) 2.36
Power (W) 6
Motor Length (in) 3
Available Motor Options P, U
Single or Three Phase Single
Interested in large quantity discount?

Product Information

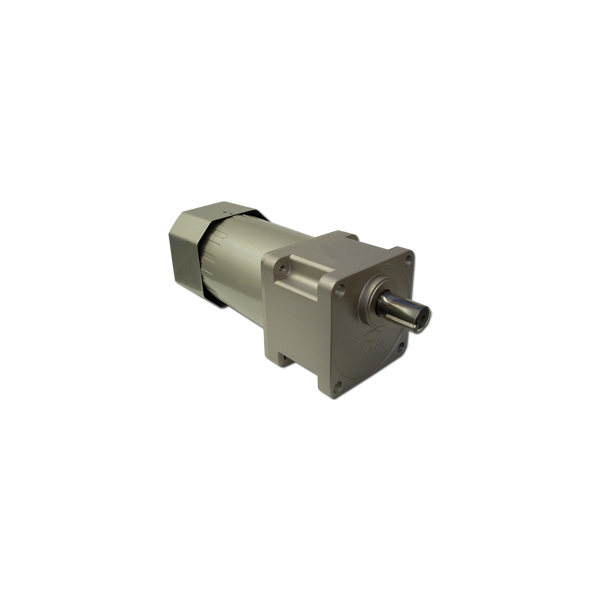

ACP-M-2IK6N-AU and ACP-M-2IK6N-CU gearmotors provide users with a simple and cost-effective solution for constant speed applications. ACP-M-2IK6N-xU gearmotors operate at 110/220VAC, so there is no need for a transformer; just hook up and go! If your application requires speed control, the ACP-M-2RK6N-xUV and ACP-M-2IK6N-xUV are both excellent options and are available in 110/220VAC. The ACP-M-2RK6N-xUV variable speed motors contain an internal friction brake that allow the motor to reverse directions quicker than the standard ACP-M-2IK6N-xUV variable speed motors. This internal friction brake limits the ACP-M-2RK6N-xUV to a 30 minute duty cycle because of potential overheating issues. The Standard ACP-M-2IK6N-xUV variable speed motors do not share this same duty cycle restriction. Both of these variable speed gearmotors require an ACP-US-2I6A-xL AC Speed Controller to operate. PLEASE NOTE THAT GEARHEADS FOR THESE MOTORS ARE SOLD SEPERATELY. Please visit ACP-G-2N Gearheads for pricing and different gear ratio options.

Note: ACP-M Induction Gearmotors are LTSOH (Limited to Stock on Hand).

  • Brushless Design for Long Life and Quiet Operation
  • 110/220 VAC Input
  • Single-Phase Operation
  • Rated for Continuous Operation
  • Self-Starting
  • High Starting Torque for High Inertial Loads
  • To be Mated with ACP-G-2N Gearheads
  • Direct Replacement for Some Panasonic AC Induction Motors
  • Cost-Effective Solution
  • Long Life and Highly Reliable
  • Can be Customized for
    • Maximum Speed
    • Winding Current
    • Shaft Options
    • Cables and Connectors
    • Clutch and/or Brake
    • Terminal Box
  • CE Certified

Single Phase Wiring

3 Phase Wiring

3D PDF

.STEP File (.RAR File)

User Manual (PDF)
