ACI-PMEJ075-4R4LAT

ACI-PMEJ075-4R4LAT

ACP-M-2IK6N-CUV

ACP-M-2IK6N-CUV

ACI-PMEJ075-4R4FAT

1pc Price:
$244.00
Quantity Discount
Inventory:
1
More Information
Frame Size (mm) 80
Rated Torque (oz-in) 602
Rated Speed (RPM) 1710
Frequency (Hz) 60
Input Voltage (VAC) 220
Current (A) 3.2
Output Power (W) 750
Capacitor (uF / V) N/A
Mounting Type Flange
Shaft Diameter (mm) 19
Weight (lbs) 26
Single or Three Phase Three
Interested in large quantity discount?

Product Information

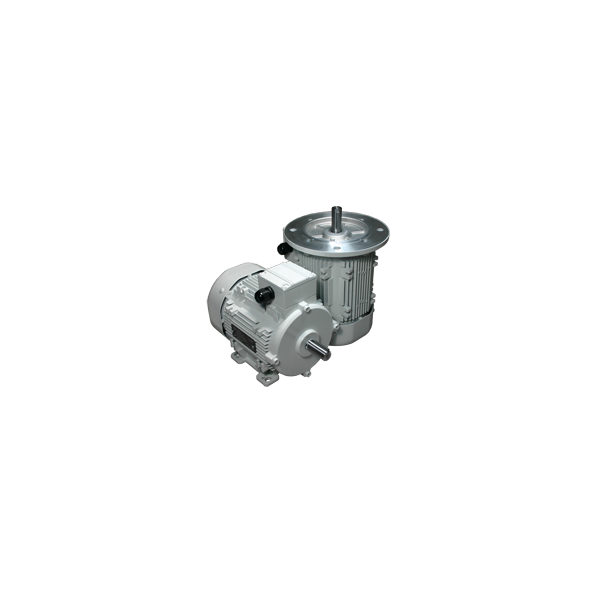

The ACI Industrial Motor Series provide users with a high-quality, affordable solution for applications that require a high torque, 3 phase AC motor. These AC Induction Motors can be ordered with a flange or foot (leg) mount option and can connect to 220VAC or 380VAC, so there is no need for a transformer, just hook up and go!

  • Brushless Design and Plastic Cooling Fan for Long Life and Quiet Operation
  • Compact Size, High Efficiency
  • 220VAC or 380VAC Input
  • Shaft Oil Seal is Dust and Waterproof
  • TEFC Design
  • IP55 Rated
  • Class F Insulation
  • Excellent Cross for Some Leeson and Baldor AC Industrial Motors
  • High Starting Torque for High Inertia Loads
  • Long Life and Highly Reliable
  • CE Certified and RoHS Compliant

3D PDF

.STEP File (.RAR File)

Spec Sheet (PDF)
