ACI-PMEJ075-4R4LAT
| Frame Size (mm) | 80 |
|---|---|
| Rated Torque (oz-in) | 602 |
| Rated Speed (RPM) | 1710 |
| Frequency (Hz) | 60 |
| Input Voltage (VAC) | 220 |
| Current (A) | 3.2 |
| Output Power (W) | 750 |
| Capacitor (uF / V) | N/A |
| Shaft Diameter (mm) | 19 |
| Weight (lbs) | 25.5 |
| Single or Three Phase | Three |
| Lead Time | Typ 42 Days |
Interested in large quantity discount?
Product Information

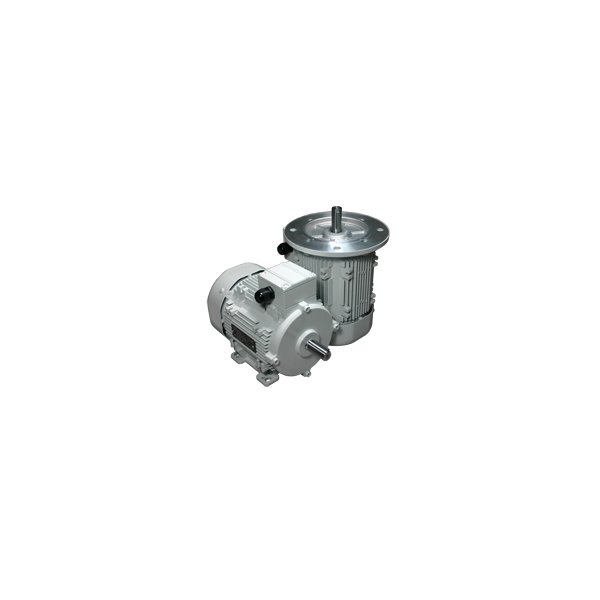

The ACI Industrial Motor Series provide users with a high-quality, affordable solution for applications that require a high torque, 3 phase AC motor. These AC Induction Motors can be ordered with a flange or foot (leg) mount option and can connect to 220VAC or 380VAC, so there is no need for a transformer, just hook up and go!
- Brushless Design and Plastic Cooling Fan for Long Life and Quiet Operation
- Compact Size, High Efficiency
- 220VAC or 380VAC Input
- Shaft Oil Seal is Dust and Waterproof
- TEFC Design
- IP55 Rated
- Class F Insulation
- Excellent Cross for Some Leeson and Baldor AC Industrial Motors
- High Starting Torque for High Inertia Loads
- Long Life and Highly Reliable
- CE Certified and RoHS Compliant
