ACP-M-5IK90A-CRUV

ACP-M-5IK90A-CRUV

ACP-M-5IK120A-SF

ACP-M-5IK120A-SF

ACP-M-5IK120A-CF

1pc Price:
$196.00
Quantity Discount
  • Buy 10 for $191.97 each and save 2%
  • Buy 25 for $175.27 each and save 11%
  • Buy 50 for $172.87 each and save 12%
  • Buy 100 for $163.27 each and save 17%
Inventory:
1
More Information
Frame Size (mm) 90
Rated Torque (oz-in) 101
Rated Speed (RPM) 1610
Starting Torque (oz-in) 107
Frequency (Hz) 60
Input Voltage (VAC) 220
Current (A) 0.92
Output Power (W) 120
Capacitor (uF / V) 7/450
Mounting Type F, P
Shaft Diameter (mm) 12
Weight (lbs) 10.36
Single or Three Phase Single
Interested in large quantity discount?

Product Information

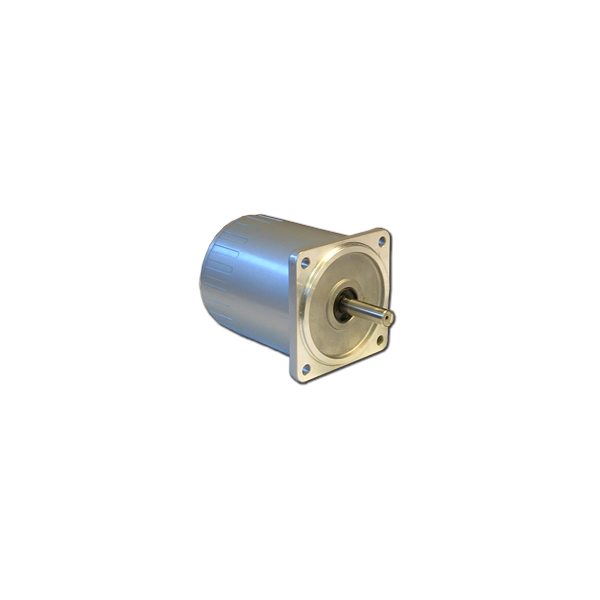

ACP-M-5xK120A motors provide users with a simple and cost-effective solution. ACP-M-5xK120A series operate at 120/220VAC, so there is no need for a transformer; just hook up and go!

Our three-phase AC Induction Motors operate at a higher efficiency than our single-phase AC Induction Motors. Our three-phase AC Indunction Motors offer a high starting torque, can be customized to have a clutch or a brake, and do not require a starting capacitor. Item Page desc

Note: ACP-M Induction Motors are LTSOH (Limited to Stock on Hand).

  • Brushless Design for Long Life and Quiet Operation
  • 120/220 VAC Input
  • Single or Three-Phase Operation
  • Rated for Continuous Operation
  • Self-Starting
  • High Starting Torque for High Inertial Loads
  • Direct Replacement for Some Panasonic AC Induction Motors
  • Cost-Effective Solution
  • Long Life and Highly Reliable
  • Can be Customized for
    • Maximum Speed
    • Winding Current
    • Shaft Options
    • Cables and Connectors
    • Clutch and/or Brake
    • Terminal Box
  • CE Certified

Single Phase Wiring

3 Phase Wiring

3D PDF

.STEP File (.RAR File)

User Manual (PDF)
