ACP-M-5IK150A-CF
| Frame Size (mm) | 90 |
|---|---|
| Rated Torque (oz-in) | 137.5 |
| Rated Speed (RPM) | 1512 |
| Starting Torque (oz-in) | 126.4 |
| Frequency (Hz) | 60 |
| Input Voltage (VAC) | 220 |
| Current (A) | 1.07 |
| Output Power (W) | 150 |
| Capacitor (uF / V) | 8/450 |
| Shaft Diameter (mm) | 12 |
| Weight (lbs) | 10.36 |
| Single or Three Phase | Single |
Interested in large quantity discount?
Product Information

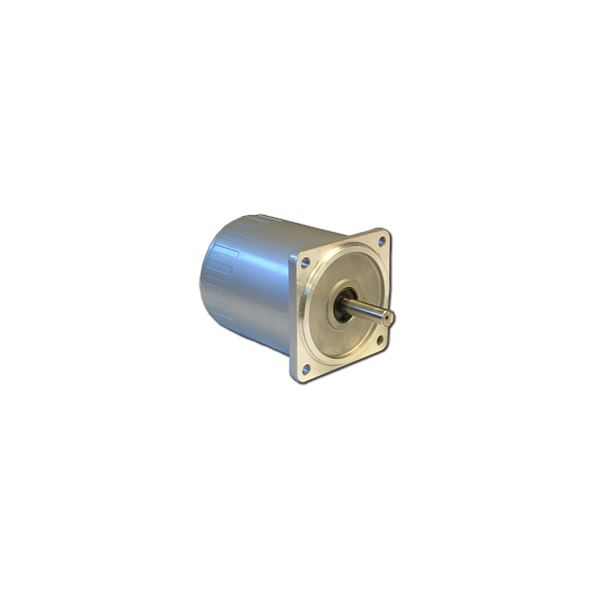

ACP-M-5xK150A motors provide users with a simple and cost-effective solution. ACP-M-5xK150A motors operate at 120/220VAC, so there is no need for a transformer; just hook up and go!
Our three-phase AC Induction Motors operate at a higher efficiency than our single-phase AC Induction Motors. Our three-phase AC Induction Motors offer a high starting torque, can be customizedto have a clutch or a brake, and do not require a starting capacitor. Item Page desc
Note: ACP-M Induction Motors are LTSOH (Limited to Stock on Hand).
- Brushless Design for Long Life and Quiet Operation
- 120/220 VAC Input
- Single or Three-Phase Operation
- Rated for Continuous Operation
- High Power Factor Up to .8
- Self-Starting
- High Starting Torque for High Inertial Loads
- Direct Replacement for Some Panasonic AC Induction Motors
- Cost-Effective Solution
- Long Life and Highly Reliable
- Can be Customized for
- Maximum Speed
- Winding Current
- Shaft Options
- Cables and Connectors
- Clutch and/or Brake
- Terminal Box
- CE Certified
.png)
.png)
Single Phase Wiring
.png)
3 Phase Wiring
