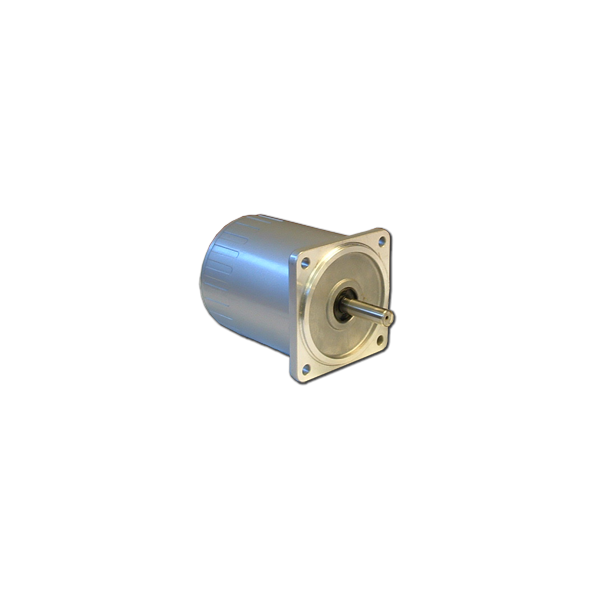

ACP-M-5IK40A-CUV

ACP-M-5IK40A-CUV

ACP-M-5IK60A-AFUV

ACP-M-5IK60A-AFUV

ACP-M-5IK60A-SFU

1pc Price:
$147.00
Quantity Discount
  • Buy 10 for $140.47 each and save 4%
  • Buy 25 for $126.26 each and save 14%
  • Buy 50 for $124.54 each and save 15%
  • Buy 100 for $118.94 each and save 19%
Inventory:
More Information
Frame Size (mm) 90
Rated Torque (oz-in) 48.6
Rated Speed (RPM) 1675
Starting Torque (oz-in) 119
Frequency (Hz) 60
Input Voltage (VAC) 220
Current (A) 0.4
Output Power (W) 60
Capacitor (uF / V) N/A
Mounting Type F, S, T, U
Shaft Diameter (mm) 12
Weight (lbs) 7.05
Single or Three Phase Three
Lead Time Typ 35 Days
Interested in large quantity discount?

Product Information

ACP-M-5xK60A motors provide users with a simple cost-effective solution. ACP-M-5xK60A motors operate at 120/220VAC, so there is no need for a transformer; just hook up and go!

If your application requires speed control, these ACP-M-5RK60A-xUV variable speed gearmotors require an ACP-US-5I60A-xL Variable Speed Controller.

Our three-phase AC Induction Motors operate at a higher efficiency than our single-phase AC Induction Motors. Our three-phase AC Induction Motors offer a high starting torque, can be customized to have a clutch or a brake, and do not require a starting capacitor.

Note: ACP-M Induction Motors are LTSOH (Limited to Stock on Hand).

  • Brushless Design for Long Life and Quiet Operation
  • 120/220 VAC Input
  • Single or Three-Phase Operation
  • Rated for Continuous Operation
  • Self-Starting
  • High Starting Torque for High Intertial Loads
  • Direct Replacement for Some Panasonic AC Induction Motors
  • Cost-Effective Solution
  • Long Life and Highly Reliable
  • Can be Customized for
    • Maximum Speed
    • Winding Current
    • Shaft Options
    • Cables and Connectors
    • Clutch and/or Brake
    • Terminal Box
  • CE Certified

Mating Receptacle: ELR-06V

Mating Pin: SLM-41T-P1.3E

Single Phase Wiring

3 Phase Wiring

3D PDF

.STEP File (.RAR File)

User Manual (PDF)
