ACP-M-5IK60A-CFUV

ACP-M-5IK60A-CFUV

ACP-M-5RK90A-ARUV

ACP-M-5RK90A-ARUV

ACP-M-5IK90A-SFU

1pc Price:
$173.00
Quantity Discount
  • Buy 10 for $165.58 each and save 4%
  • Buy 25 for $153.63 each and save 11%
  • Buy 50 for $151.53 each and save 12%
  • Buy 100 for $144.65 each and save 16%
Inventory:
4
More Information
Frame Size (mm) 90
Rated Torque (oz-in) 76.6
Rated Speed (RPM) 1675
Starting Torque (oz-in) 208
Frequency (Hz) 60
Input Voltage (VAC) 220
Current (A) 0.56
Output Power (W) 90
Capacitor (uF / V) N/A
Mounting Type F, S, T, U
Shaft Diameter (mm) 12
Weight (lbs) 8.38
Single or Three Phase Three
Interested in large quantity discount?

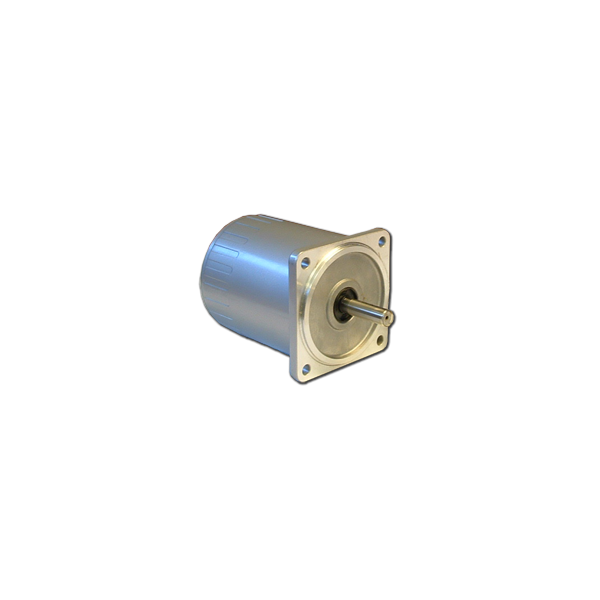

Product Information

ACP-M-5xK90A motors a simple and cost-effective solution. ACP-M-5xK90A motors operate at 120/220VAC, so there is no need for a transformer; just hook up and go!

If your application requires speed control, these ACP-M-5RK90A-xUV variable speed gearmotors require an ACP-US-5I90A-xL Variable Speed Controller.

Our three-phase AC Induction Motors operate at a higher efficiency than our single-phase AC Induction Motors. Our three-phase AC Induction Motors offer a high starting torque, can be customized to have a clutch or a brake, and do not require a starting capacitor.

Note: ACP-M Induction Motors are LTSOH (Limited to Stock on Hand).

  • Brushless Design for Long Life and Quiet Operation
  • 120/220 VAC Input
  • Single or Three-Phase Operation
  • Rated for Continuous Operation
  • Self-Starting
  • High Starting Torque for High Inertial Loads
  • Direct Replacement for Some Panasonic AC Induction Motors
  • Cost-Effective Solution
  • Long Life and Highly Reliable
  • Can be Customized for
    • Maximum Speed
    • Winding Current
    • Shaft Options
    • Cables and Connectors
    • Clutch and/or Brake
    • Terminal Box
  • CE Certified

Mating Receptacle: ELR-06V

Mating Pin: SLM-41T-P1.3E

Single Phase Wiring

3 Phase Wiring

3D PDF

.STEP File (.RAR File)

User Manual (PDF)
