BDA-56C-100-180V-1800
| Volts (DC) | 180 |
|---|---|
| RPM | 1800 |
| Amps | 5.4 |
| Power (HP) | 1 |
| Weight (lbs) | 33 |
Interested in large quantity discount?
Product Information

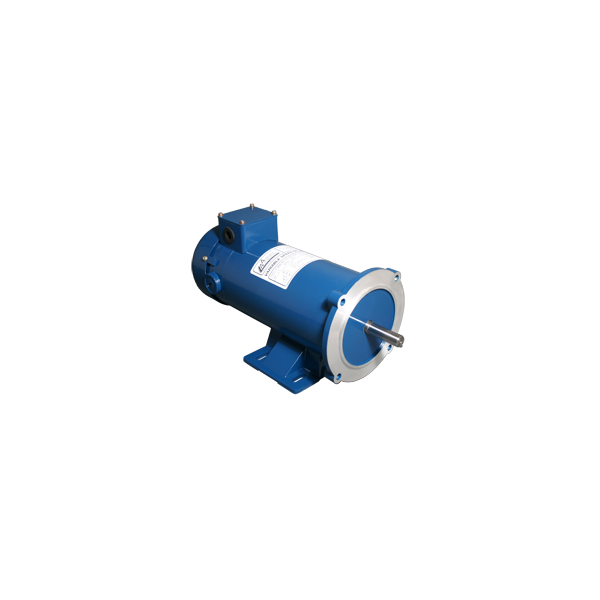

The 56C Frame DC Motors provide a cost-effective solution for your application. The BDA-56C-100 can be used anywhere from power pulleys, belts, and pumps, to water heating and other machine applications. The BDA-56C-100 has strong permanent magnets to provide the torque you need. The BDA-56C-100 1 HP motor can provide up to 576 oz-in of torque. Cooling vents on the motor casing are placed optimally for internal cooling of the motor.
- DC Brush Motor
- Designed for High-Torque Brush Applications
- Up to 576 oz-in of Torque
- NEMA Frame Size 56C
- Body Diameter 123mm
