BDPG-12-30-2.4V-12500-R4
| Gear Ratio | 4 |
|---|---|
| Rated Torque (oz-in) | 0.28 |
| Peak Torque (oz-in) | 1.5 |
| No Load Speed (rpm) | 3125 |
| Rated Speed (RPM) | 2400 |
| Nominal Voltage (V) | 3.0 |
| Rated Current (A) | 0.45 |
| Output Power (W) | 0.62 |
| Body Diameter (mm) | 12 |
| Total Length (mm) | 42.8 |
| Gearbox Length "L" (mm) | 12.8 |
| Shaft Diameter (mm) | 3 |
| Weight (lbs) | 0.05 |
Interested in large quantity discount?
Product Information

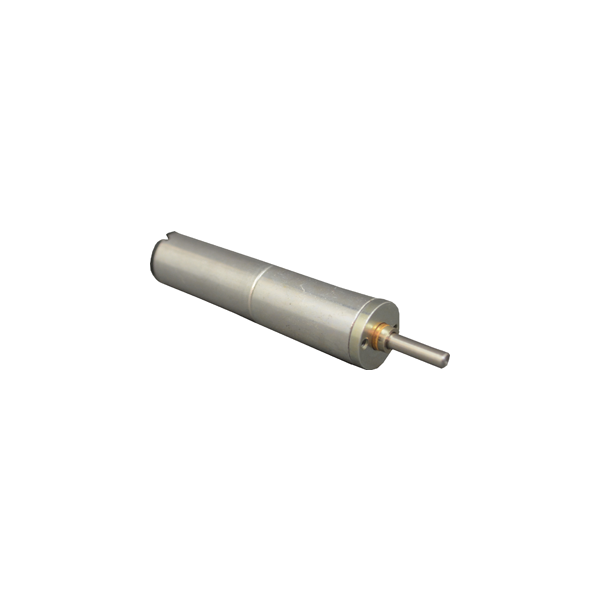

The BDPG 12 Series was designed for high volume OEM applications with low cost being the primary objective. These reliable low cost Brush DC Planetary Gearmotors come in a variety of power levels and sizes that will be sure to fit your needs. The motors are fully reversible. The BDPG 12 Series is a cost-effective solution to manage motion control in many rotary applications including medical, semiconductor, pumps, robotics, hobby, CNC, and many other applications where a low cost Brush DC Planetary Gearmotor is needed.
- DC Brush Planetary Gearmotor
- Operates with 2.4VDC Input
- Designed for High Volume Applications
- Up to 27.78 oz-in of Continuous Torque
- 12 mm Motor Body Diameter
- Custom Verisons are available
.png)
.png)
Spec Sheet (PDF)
