BDB-80-175-1800

1pc Price:
$228.00
Inventory:
1
More Information
Volts (DC) 90
RPM 1800
Amps 1.28
Watts (W) 115
Rated Torque (oz-in) 70
Torque Constant (oz-in/amp) 61.5
Voltage Constant (V/kRPM) 45.5
Terminal Resistance (ohms) 6.6
Weight (lbs) 9.25
Interested in large quantity discount?

Product Information

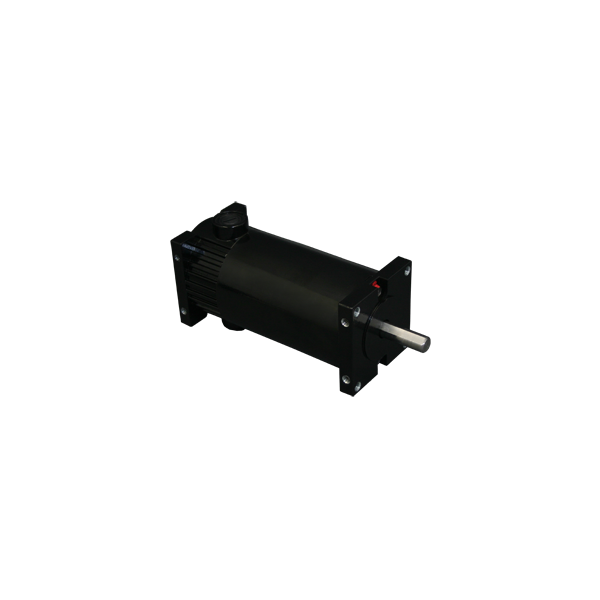

The BDB-80-175 series DC motors provide a cost-effective solution for your application. This motor can be used anywhere from power pulleys, belts, pumps to water heating and other machine applications. The BDB-80-175 series has ceramic permanent magnets to provide the torque your application requires. The BDB-80-175 1/8HP motor can provide up to 70 oz-in of torque.

Note: Part number BDB-80-175-1800 is limited to stock on hand.

  • Dynamically balanced armatures
  • Double shielded ball bearings
  • Class F Insulation
  • Carbon steel shaft material
  • Oversized with integral shunts

Spec Sheet (PDF)
