BDC-269-N-24-3800-W-CG-W2

BDC-269-N-24-3800-W-CG-W2

BDB-65-125-1810

BDB-65-125-1810

BDC-269-R-12-2200-SY-CH-W6

Unit Price:
$443.00
Quantity Discount
  • Buy 10 for $408.41 each and save 8%
  • Buy 25 for $393.28 each and save 11%
  • Buy 50 for $379.23 each and save 14%
  • Buy 100 for $347.78 each and save 21%
  • Buy 250 for $336.19 each and save 24%
  • Buy 500 for $327.46 each and save 26%
  • Buy 1000 for $319.17 each and save 28%
  • Buy 2500 for $315.18 each and save 29%
Inventory:
0
Out of Stock
More Information
Minimum Purchase Quantity None
No Load Speed (RPM) 2200
Rated Voltage (V) 12
Rated Torque (oz-in) 113.29
Rated Speed (RPM) 1800
Rated Current (A) 20
Starting Torque (oz-in) 566.47
Starting Current (A) 100
Interested in large quantity discount?

Product Information

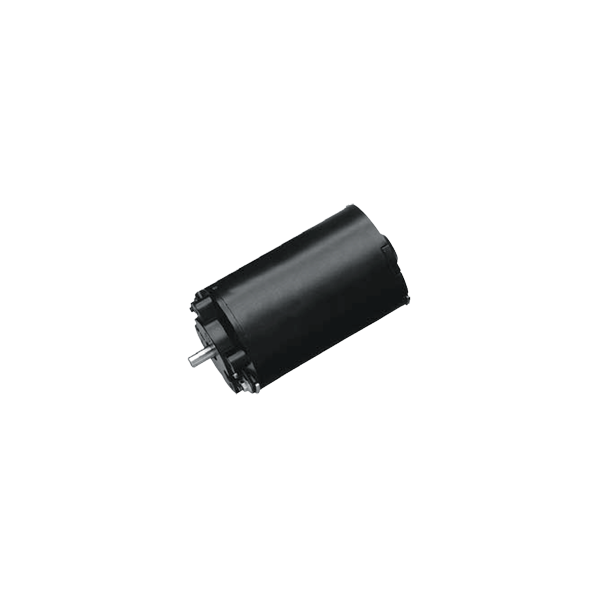

Anaheim Automation's DC motors provide a cost effective solution for your application. The BDC-269 can be used in many applications such as robotics and medical applications. The BDC-269 has strong permanent magnets to provide the torque you need. The BDC-269 can provide up to 113.29 oz-in of rated torque. Cooling vents on the motor casing are placed optimally for internal cooling of the motor. For custom voltage, windings, and cables, please contact the factory.

*Note: Not all motors are stock items. Minimum purchases are required for most part numbers. Contact Anaheim Automation for details.

  • DC Brush Motor
  • 95mm Diameter
  • Up to 113.29 oz-in of Rated Torque
  • Designed for High-Volume Applications
  • Custom Versions are Available
  • ISO & TS Automotive Certified

Spec Sheet (PDF)
