BDB-65-125-1810
| Volts (DC) | 90 |
|---|---|
| RPM | 1810 |
| Amps | 0.46 |
| Watts (W) | 41 |
| Rated Torque (oz-in) | 20.8 |
| Torque Constant (oz-in/amp) | 59.6 |
| Voltage Constant (V/kRPM) | 44.1 |
| Terminal Resistance (ohms) | 24.9 |
| Weight (lbs) | 5.25 |
Interested in large quantity discount?
Product Information

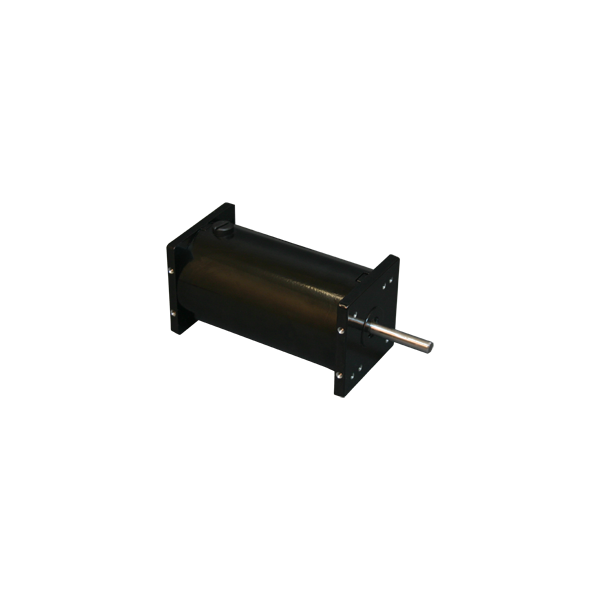

The BDB-65-125 series DC motors provide a cost-effective solution for your application. This motor can be used anywhere from power pulleys, belts, pumps to water heating and other machine applications. The BDB-65-125 series has ceramic permanent magnets to provide the torque your application requires. The BDB-65-125 1/27HP motor can provide up to 20.8 oz-in of torque.
Note: Part number BDB-65-125-1810 is limited to stock on hand.
- Dynamically balanced armatures
- Double shielded ball bearings
- Class F Insulation
- Carbon steel shaft material
- Oversized with integral shunts
.png)
Spec Sheet (PDF)
