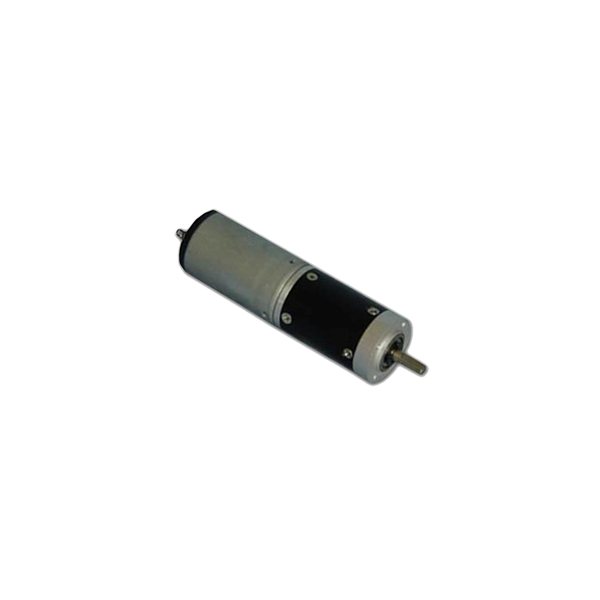

BDPG-22-38-12V-6000-R516
| Gear Ratio | 516 |
|---|---|
| Rated Torque (oz-in) | 69.44 |
| Peak Torque (oz-in) | 166.65 |
| No Load Speed (rpm) | 11 |
| Rated Speed (RPM) | 10 |
| Nominal Voltage (V) | 12 |
| Rated Current (A) | 0.195 |
| Output Power (W) | 1.6 |
| Body Diameter (mm) | 22 |
| Total Length (mm) | 75.5 |
| Gearbox Length "L" (mm) | 37.5 |
| Shaft Diameter (mm) | 4 |
| Weight (lbs) | 0.2 |
Interested in large quantity discount?
Product Information
The BDPG-22-38 Series was designed for high volume OEM applications with low cost being the primary objective. These reliable low cost Brush DC Planetary Gearmotors come in a variety of power levels and sizes, and will be sure to fit your needs. The motors are fully reversible. The BDPG-22-38 Series is a cost effective solution to manage motion control in many rotary applications including medical, semiconductor, pumps, robotics, hobby, CNC, and many other applications where a low cost Brush DC Planetary Gearmotor is needed.
- DC Brush Planetary Gearmotor
- Designed for High-Volume Applications
- Up to 69.44 oz-in of Continuous Torque
- 22mm Motor Body Diameter
- Custom Versions are Available
- CE Certified and RoHS Compliant
.png)
.png)
