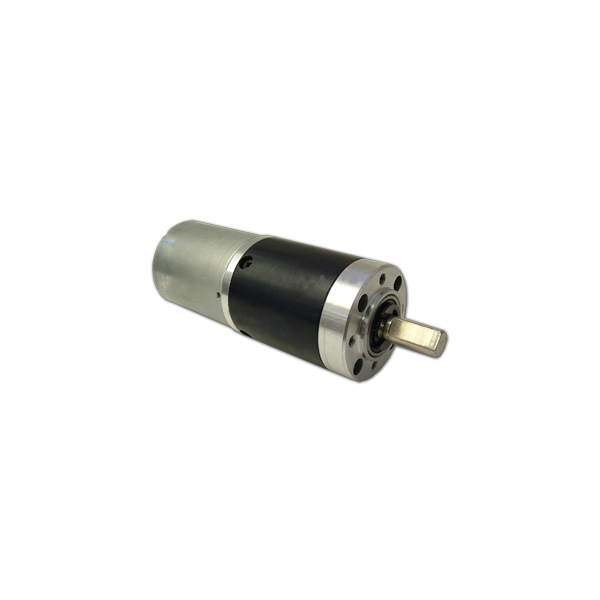

BDPG-36-40-12V-5000-R3.7
| Gear Ratio | 3.7 |
|---|---|
| Rated Torque (oz-in) | 3.88 |
| Peak Torque (oz-in) | 69 |
| No Load Speed (rpm) | 1347 |
| Rated Speed (RPM) | 1159 |
| Nominal Voltage (V) | 12 |
| Rated Current (A) | 0.6 |
| Output Power (W) | 3.5 |
| Body Diameter (mm) | 35 |
| Total Length (mm) | 76 |
| Gearbox Length "L" (mm) | 35.5 |
| Shaft Diameter (mm) | 8 |
| Weight (lbs) | 0.52 |
Interested in large quantity discount?
Product Information
The BDPG-36-40 Series was designed for high volume OEM applications with low cost being the primary objective. They come in variety of power levels, sizes, and will be sure to fit your Brush DC Planetary Gearmotor requirments. These motors are fully reversible. The BDPG-36-40 Series motors are a cost effective solution to manage motion control in many rotary applications including medical, semiconductor, pumps, robotics, CNC, or any other situation when a low cost Brush DC Planetary Gearmotor is needed.
- DC Brush Gearmotor
- Designed for High-Volume Applications
- Up to 138.87 oz-in of Torque
- 35mm Motor Body Diameter
- Custom Versions are Available
- CE Certified and RoHS Compliant
