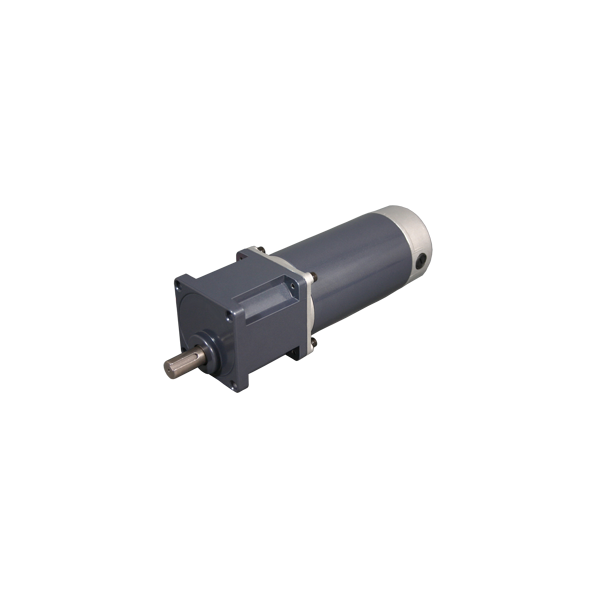

BDSGS-90-194-24V-3000-R10
| Gear Ratio | 10 |
|---|---|
| Rated Torque (oz-in) | 1305.41 |
| Peak Torque (oz-in) | 1805.36 |
| No Load Speed (rpm) | 300 |
| Rated Speed (RPM) | 252 |
| Nominal Voltage (V) | 24 |
| Rated Current (A) | 17 |
| Output Power (W) | 300 |
| Body Diameter (mm) | 90 |
| Total Length (mm) | 194.5 |
| Gearbox Length "L" (mm) | 321.5 |
| Shaft Diameter (mm) | 18 |
| Weight (lbs) | 11.02 |
| Lead Time | Typ 110 Days |
Interested in large quantity discount?
Product Information
The BDSGS-90-194 Series Brush DC Spur Gearmotor is a high-quality affordable solution for motion control applications such as medical, semiconductor, pumps, robotics, CNC and many more. The 24V BDSGS-90-194 series has a high output and continuous torque of up to 4,166 oz-in. Developed for high-volume OEM applications; Brushl DC Gearmotors provide cost-effective solutions, never sacrificing quality of system performance.
- DC Brush Gearmotor
- Designed for High-Volume Applications
- Up to 4,166 oz-in of Continuous Torque
- 90 mm Motor Body Diameter
- 6 Gear Ratios to Choose From
- CE Certified and UL Listed
