BDSGS-90-194-24V-3000-R3

Unit Price:
Inventory:
0
Out of Stock
More Information
Gear Ratio 3
Rated Torque (oz-in) 388.84
Peak Torque (oz-in) 555.49
No Load Speed (rpm) 1000
Rated Speed (RPM) 840
Nominal Voltage (V) 24
Rated Current (A) 17
Output Power (W) 300
Body Diameter (mm) 90
Total Length (mm) 194.5
Gearbox Length "L" (mm) 321.5
Shaft Diameter (mm) 18
Weight (lbs) 11.02
Interested in large quantity discount?

Product Information

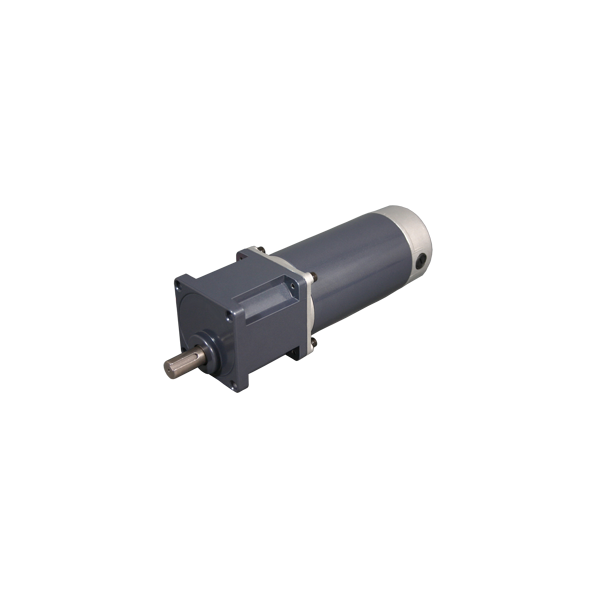

The BDSGS-90-194 Series Brush DC Spur Gearmotor is a high-quality affordable solution for motion control applications such as medical, semiconductor, pumps, robotics, CNC and many more. The 24V BDSGS-90-194 series has a high output and continuous torque of up to 4,166 oz-in. Developed for high-volume OEM applications; Brushl DC Gearmotors provide cost-effective solutions, never sacrificing quality of system performance.

  • DC Brush Gearmotor
  • Designed for High-Volume Applications
  • Up to 4,166 oz-in of Continuous Torque
  • 90 mm Motor Body Diameter
  • 6 Gear Ratios to Choose From
  • CE Certified and UL Listed
