BDWG111NP-178-12-100-CL-C3-W7
| Rated Voltage (V) | 12 |
|---|---|
| Rated Current (A) | 6 |
| Max Current (A) | 48 |
| Rated Speed (RPM) | 100 |
| Rated Torque (oz-in) | 424.8 |
| Max Output Torque (oz-in) | 2.832 |
| Weight (lbs) | 2.76 |
| Lead Time | Typ 80 Days |
Interested in large quantity discount?
Product Information

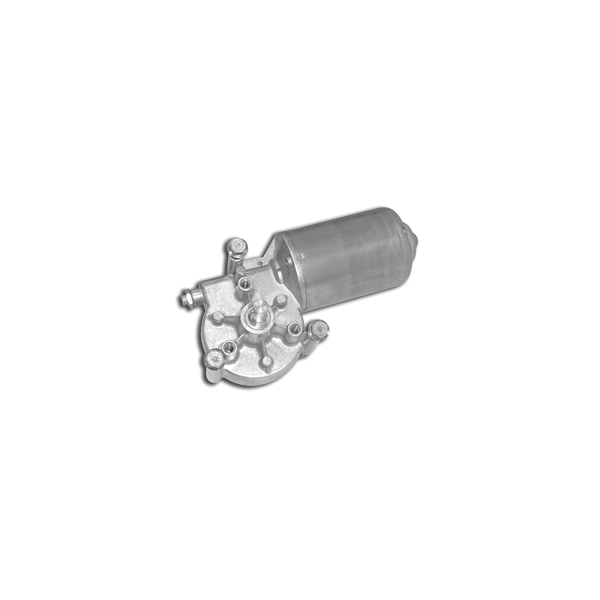

The BDWG111NP-178 Series is designed for high-volume OEM applications with low cost being the primary objective. These reliable low cost Brush DC Worm Gearmotors come in a variety of power levels and sizes, and will be sure to fit your needs. The motors are fully reversible. The BDWG111NP-178 Series is a cost-effective solution to manage motion control in many rotary applications including medical, semiconductor, pumps, robotics, hobby, CNC, and many other applications where a low cost Brush DC Worm Gearmotor is needed.
- DC Brush Worm Gearmotor
- Designed for High-Volume Applications
- Up to 850 oz-in of Continuous Torque
- 60mm Motor Body Diameter
- 178mm Length
- CE Certified and RoHS Compliant
- Mounting Screws Included
.png)
.png)
.png)
Note: *Mating Connector: Plug AMP 180907-0 (2x) Female Terminal 6.35
.png)
.png)
.png)
