BDWG111NP-178-12-25-BL-C2-W2

BDWG111NP-178-12-25-BL-C2-W2

BDWG111NP-178-24-40-BR-C2-W2

BDWG111NP-178-24-40-BR-C2-W2

BDWG111NP-178-24-25-BL-C2-W2

1pc Price:
$112.00
Inventory:
5
More Information
Rated Voltage (V) 24
Rated Current (A) 2
Max Current (A) 8
Rated Speed (RPM) 25
Rated Torque (oz-in) 849.7
Max Output Torque (oz-in) 3.539
Weight (lbs) 2.76
Interested in large quantity discount?

Product Information

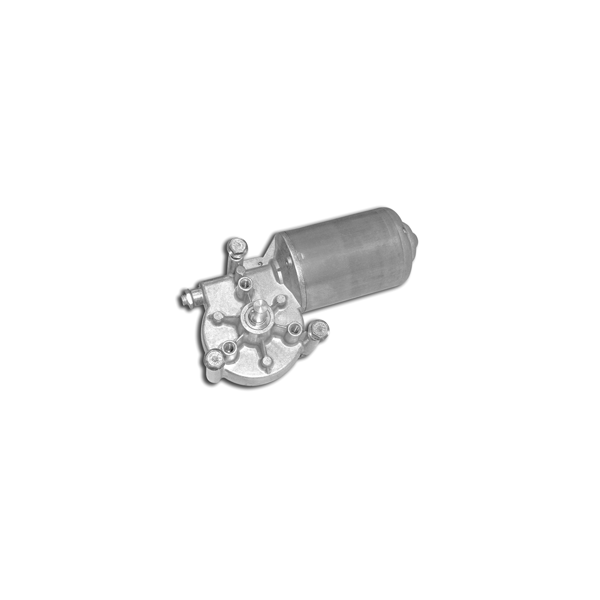

The BDWG111NP-178 Series is designed for high-volume OEM applications with low cost being the primary objective. These reliable low cost Brush DC Worm Gearmotors come in a variety of power levels and sizes, and will be sure to fit your needs. The motors are fully reversible. The BDWG111NP-178 Series is a cost-effective solution to manage motion control in many rotary applications including medical, semiconductor, pumps, robotics, hobby, CNC, and many other applications where a low cost Brush DC Worm Gearmotor is needed.

  • DC Brush Worm Gearmotor
  • Designed for High-Volume Applications
  • Up to 850 oz-in of Continuous Torque
  • 60mm Motor Body Diameter
  • 178mm Length
  • CE Certified and RoHS Compliant
  • Mounting Screws Included

Note: *Mating Connector: Plug AMP 180907-0 (2x) Female Terminal 6.35

.STEP File (.RAR File)

Spec Sheet (PDF)
