BDWG111NP-178-12-40-AL-C2-W2

BDWG111NP-178-12-40-AL-C2-W2

BDWG111NP-178-12-40-BL-C2-W2

BDWG111NP-178-12-40-BL-C2-W2

BDWG111NP-178-24-40-AL-C2-W2

Unit Price:
$131.00
Quantity Discount
  • Buy 10 for $126.20 each and save 4%
  • Buy 25 for $122.26 each and save 7%
  • Buy 50 for $112.63 each and save 14%
  • Buy 100 for $109.31 each and save 17%
Inventory:
0
Out of Stock
More Information
Rated Voltage (V) 24
Rated Current (A) 2.5
Max Current (A) 13
Rated Speed (RPM) 40
Rated Torque (oz-in) 708.1
Max Output Torque (oz-in) 3.539
Weight (lbs) 2.76
Interested in large quantity discount?

Product Information

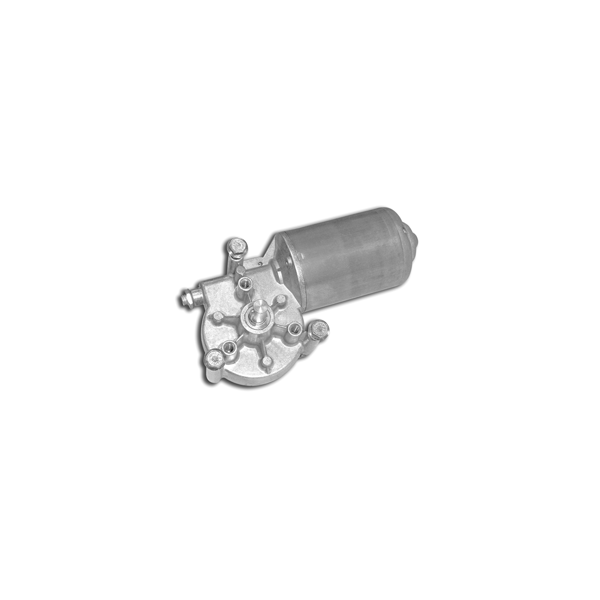

The BDWG111NP-178 Series is designed for high-volume OEM applications with low cost being the primary objective. These reliable low cost Brush DC Worm Gearmotors come in a variety of power levels and sizes, and will be sure to fit your needs. The motors are fully reversible. The BDWG111NP-178 Series is a cost-effective solution to manage motion control in many rotary applications including medical, semiconductor, pumps, robotics, hobby, CNC, and many other applications where a low cost Brush DC Worm Gearmotor is needed.

  • DC Brush Worm Gearmotor
  • Designed for High-Volume Applications
  • Up to 850 oz-in of Continuous Torque
  • 60mm Motor Body Diameter
  • 178mm Length
  • CE Certified and RoHS Compliant
  • Mounting Screws Included

Note: *Mating Connector: Plug AMP 180907-0 (2x) Female Terminal 6.35

.STEP File (.RAR File)

Spec Sheet (PDF)
