BDWG317NP-192-12-25-DL-C4-W3
| Rated Voltage (V) | 12 |
|---|---|
| Rated Current (A) | 2.5 |
| Max Current (A) | 8 |
| Rated Speed (RPM) | 25 |
| Rated Torque (oz-in) | 566.4 |
| Max Output Torque (oz-in) | 1.696 |
| Weight (lbs) | 2.54 |
| Lead Time | Typ 80 Days |
Interested in large quantity discount?
Product Information

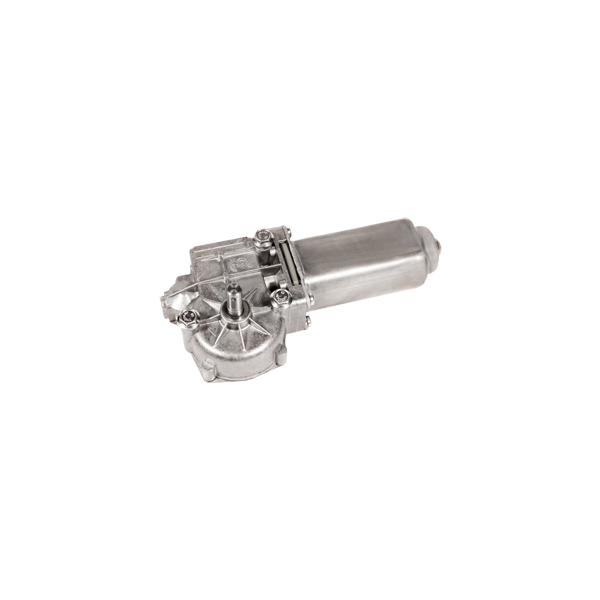

The BDWG317NP-192 Series is designed for high volume OEM applications with low cost being the primary objective. These reliable low cost Brush DC Worm Gearmotors come in a variety of power levels and sizes, and will be sure to fit your needs. The motors are fully reversible. The BDWG317NP-192 Series is a cost effective solution to manage motion control in many rotary applications including medical, semiconductor, pumps, robotics, hobby, CNC, and many other applications where a low cost Brush DC Worm Gearmotor is needed.
- DC Brush Worm Gearmotor
- Designed for High Volume Applications
- Up to 566.5 oz-in of Continuous Torque
- 48mm motor Body Diameter
- CE Certified and RoHS Compliant
.png)
.png)
.png)
Note: *Mating Connector: Plug AMP 180907-0 (2x) Female Terminal 6.35
