BDWG319NP-207-12-45-FL-C6-W3
| Rated Voltage (V) | 12 |
|---|---|
| Rated Current (A) | 6 |
| Max Current (A) | 50 |
| Rated Speed (RPM) | 45 |
| Rated Torque (oz-in) | 1132.9 |
| Max Output Torque (oz-in) | 5.664 |
| Weight (lbs) | 3.74 |
Interested in large quantity discount?
Product Information
The BDWG319 Series is designed for high volume OEM applications with low cost being the primary objective. These reliable low cost Brush DC Worm Gearmotors come in a variety of power levels and sizes, and will be sure to fit your needs. The motors are fully reversible. The BDWG319 Series is a cost effective solution to manage motion control in many rotary applications including medical, semiconductor, pumps, robotics, hobby, CNC, and many other applications where a low cost Brush DC Worm Gearmotor is needed.

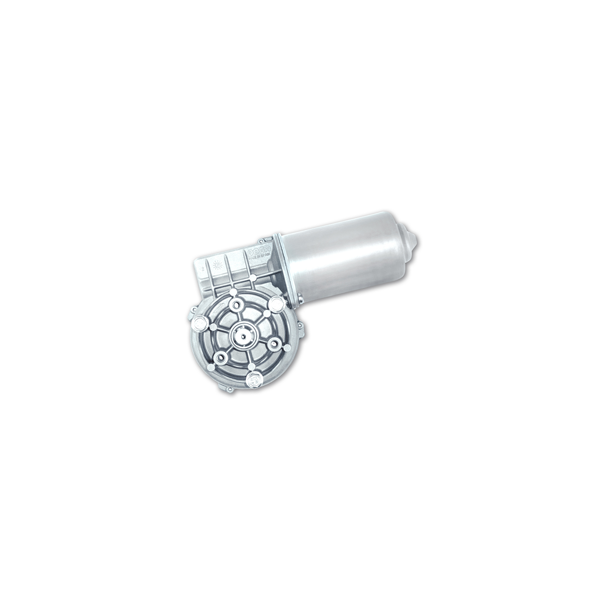

- DC Brush Worm Gearmotor
- Designed for High-Volume Applications
- Up to 1274 oz-in of Rated Torque
- 60mm Motor Body Diameter
- 207mm Overall Length
- CE Certified, and RoHS Compliant
- Mounting Screws Included
.png)
.png)
.png)
Note: *Mating Connector: Plug AMP 180907-0 (2x) Female Terminal 6.35
.png)
.png)
