BLK243S-170V-3000
| Rated Voltage (V) | 170 |
|---|---|
| Rated Power (Watts) | 493 |
| Rated Torque (oz-in) | 180 |
| Rated Speed (RPM) | 3000 |
| Torque Constant (oz-in/A) | 62.1 |
| Back EMF Voltage (V/kRPM) | 28.8 |
| Line-to-Line Resistance (ohm) | 3.85 |
| Line-to-Line Inductance (mH) | 10.8 |
| Rotor Inertia (oz-in-sec2) | 0.0067826 |
| "L" Motor Length (mm) | 130 |
| Weight (lbs) | 3.52 |
Interested in large quantity discount?
Product Information

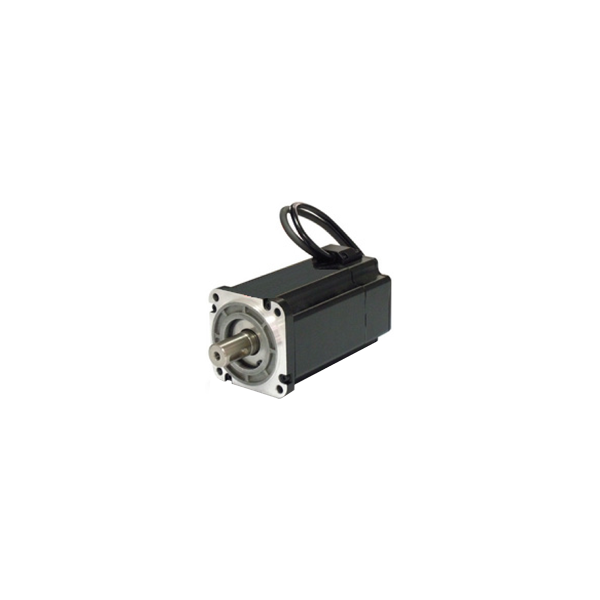

The powerful BLK24 Series are square-bodied 60mm frame Brushless DC Motors and meet the splash-proof requirements for most applications. The BLK24 Series are squared-bodied motors including an aluminum square-mounting flange to allow easy installation, includes Class F insulation for high temperature operation and has a rated torque value of 19.8 to 180 oz-in, and a rated speed of 3,000 to 14,400 rpm. This series is offered in three different stack lengths to provide greater output torque, and utilizes Hall Sensor Feedback.
*Note: Ingress protection rating is IP65 for motor body, IP54 at shaft. Product ships with a shaft seal included. Use the shaft seal to maintain IP65 rating.
*Note: BLK24 motors have a 200pc MOQ (minimum order quantity) when not in stock.
- 60mm Frame Size BLDC Motors
- IP65 Rating with Shaft Seal*
- Complete Protection From Dust Particles
- Can be Subjected to Humid or Moist Environments
- Long Life and Highly Reliable
- Cost-Effective Replacement for Brush DC Motors
- Hall Sensor Feedback
- Available in Three Different Stack Lengths
- CE Certified and RoHS Compliant
.png)
Note 1: Dual Shaft Option Only
.png)
.png)
