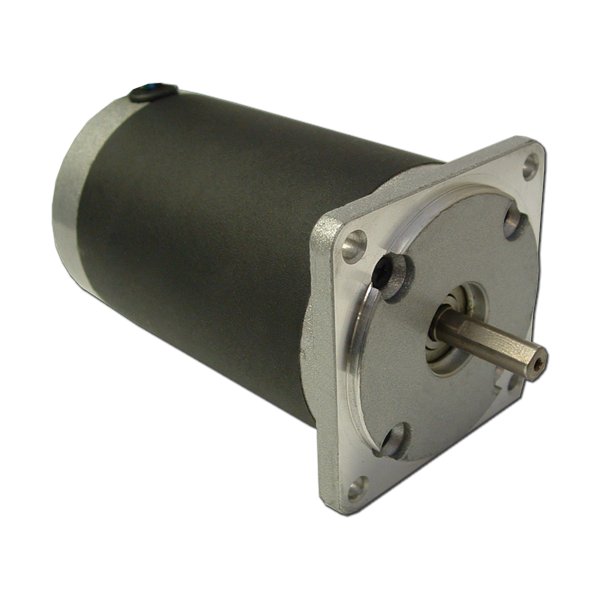

BLWS242S-24V-2300
| Rated Voltage (V) | 24 |
|---|---|
| Rated Power (Watts) | 57 |
| Rated Torque (oz-in) | 34 |
| Rated Speed (RPM) | 2300 |
| Torque Constant (oz-in/A) | 7.07 |
| Back EMF Voltage (V/kRPM) | 5.45 |
| Line-to-Line Resistance (ohm) | 1.4 |
| Line-to-Line Inductance (mH) | 1.7 |
| Rotor Inertia (oz-in-sec2) | 0.0028 |
| "L" Length (in) | 2.04 |
| Weight (lbs) | 2.75 |
Interested in large quantity discount?
Product Information
The BLWS24 Series Brushless DC Motors come in a compact package with high power density. These motors are cost effective solutions to many velocity control applications. The motors come in a standard 8- lead configuration. We can also customize the windings to perfectly match your voltage, current, and maximum operating speed. Special shaft modifications, cables and connectors are also available upon request.
- NEMA Size 24 BLDC Motors
- Compact Size and Power Density
- Cost-Effective Solution
- Long Life and Highly Reliable
- Affordable Replacement For Brush DC Motors
- Can be Customized for
- Maximum Speed
- Winding Current
- Shaft Options
- Cables and Connectors
- CE Certified and RoHS Compliant
.png)
.png)
.png)
