BLK321S-170V-3000
| Rated Voltage (V) | 170 |
|---|---|
| Rated Power (Watts) | 750 |
| Rated Torque (oz-in) | 338 |
| Rated Speed (RPM) | 3000 |
| Torque Constant (oz-in/A) | 46.73 |
| Back EMF Voltage (V/kRPM) | 27.2 |
| Line-to-Line Resistance (ohm) | 0.72 |
| Line-to-Line Inductance (mH) | 4.9 |
| Rotor Inertia (oz-in-sec2) | 0.0192592 |
| "L" Motor Length (mm) | 133 |
| Weight (lbs) | 7.05 |
Interested in large quantity discount?
Product Information

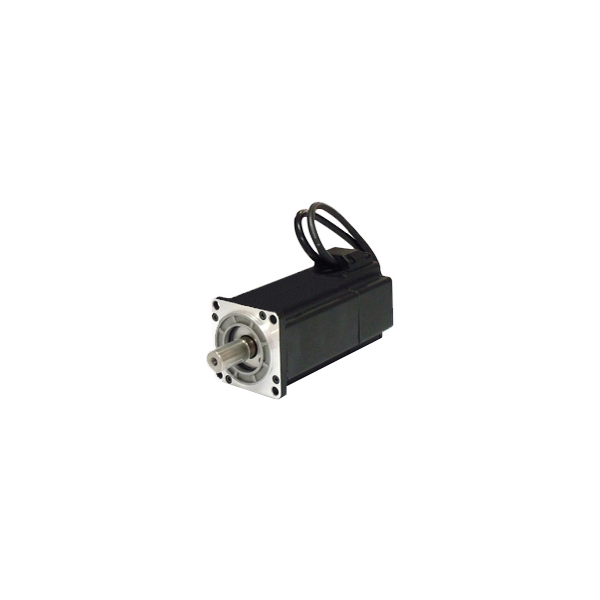

The powerful BLK32 Series are square-bodied 80mm frame size Brushless DC Motors and meet the splash-proof requirements for most applications. The BLK32 Series are squared-bodied motors including an aluminum square-mounting flange to allow easy installation, includes Class F insulation for high temperature operation and has a rated torque value of 293-453 oz-in. This series is offered in three different stack lengths to provide greater output torque, has a rated speed of 3,000 RPM and utilizes Hall Sensor Feedback.
*Note: Ingress protection rating is IP65 for motor body, IP54 at shaft. Product ships with a shaft seal included. Use the shaft seal to maintain IP65 rating.
*Note: BLK32 motors have a 200pc MOQ (minimum order quantity) when not in stock.
- 80mm Frame Size BLDC Motors
- IP65 Rating with Shaft Seal*
- Complete Protection From Dust Particles
- Can be Subjected to Moist or Humid Environments
- Long Life and Highly Reliable
- Cost-Effective Replacement for Brush DC Motors
- Hall Sensor Feedback
- Available in Two Different Stack Lengths
- CE Certified and RoHS Compliant
