BLWR110S-15V-8000

BLWR110S-15V-8000

BLWR111S-24V-10000

BLWR111S-24V-10000

BLWR110D-15V-8000

1pc Price:
$96.00
Quantity Discount
  • Buy 10 for $92.63 each and save 4%
  • Buy 25 for $74.73 each and save 22%
  • Buy 100 for $41.97 each and save 56%
Inventory:
10
More Information
Rated Voltage (V) 15
Rated Power (Watts) 6
Rated Torque (oz-in) 1
Rated Speed (RPM) 8000
Torque Constant (oz-in/A) 1.62
Back EMF Voltage (V/kRPM) 1.88
Line-to-Line Resistance (ohm) 8
Line-to-Line Inductance (mH) 2.5
Rotor Inertia (oz-in-sec2) 0.0000170
"L" Motor Length (mm) 26
Weight (lbs) 0.13
Interested in large quantity discount?

Product Information

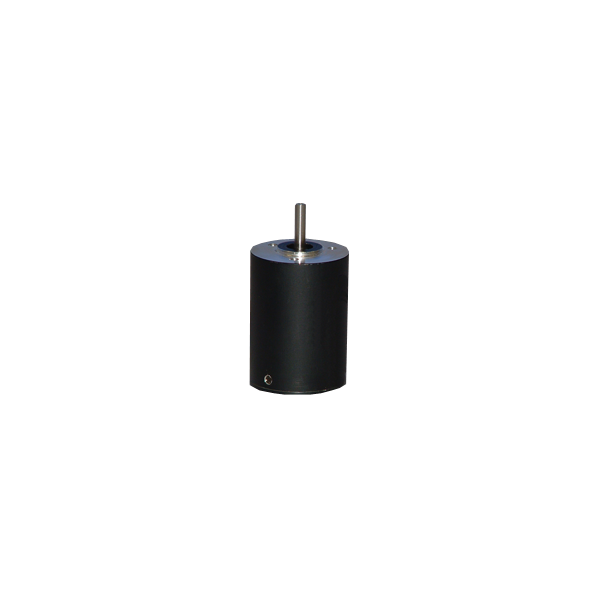

The BLWR11 Series Brushless DC Motors come in a compact package with high power density. These motors are cost effective solutions to many velocity control applications. The star wound motor comes in a standard 8-lead configuration. We can also customize the winding to perfectly match your voltage, current, and maximum operating speed. Special shaft modifications, cables and connectors are also available upon request.

  • 28mm Round Body
  • Compact Size and Power Density
  • Long Life and Highly Reliable
  • Cost-Effective Replacement for Brush DC Motors
  • Can be Customized for
    • Maximum Speed
    • Winding Current
    • Shaft Options
    • Cables and Connectors
  • RoHS Compliant

3D PDF

.STEP File (.RAR File)

Spec Sheet (PDF)

CE Compliant

RoHS Compliant
