BLWR110D-15V-8000

BLWR110D-15V-8000

BLWR111D-24V-10000

BLWR111D-24V-10000

BLWR111S-24V-10000

1pc Price:
$72.00
Quantity Discount
  • Buy 10 for $69.17 each and save 4%
  • Buy 25 for $55.80 each and save 23%
  • Buy 100 for $31.34 each and save 56%
Inventory:
202
More Information
Rated Voltage (V) 24
Rated Power (Watts) 15
Rated Torque (oz-in) 2
Rated Speed (RPM) 10000
Torque Constant (oz-in/A) 2.27
Back EMF Voltage (V/kRPM) 1.875
Line-to-Line Resistance (ohm) 4.63
Line-to-Line Inductance (mH) 1.69
Rotor Inertia (oz-in-sec2) 0.0000300
"L" Motor Length (mm) 40
Weight (lbs) 0.18
Interested in large quantity discount?

Product Information

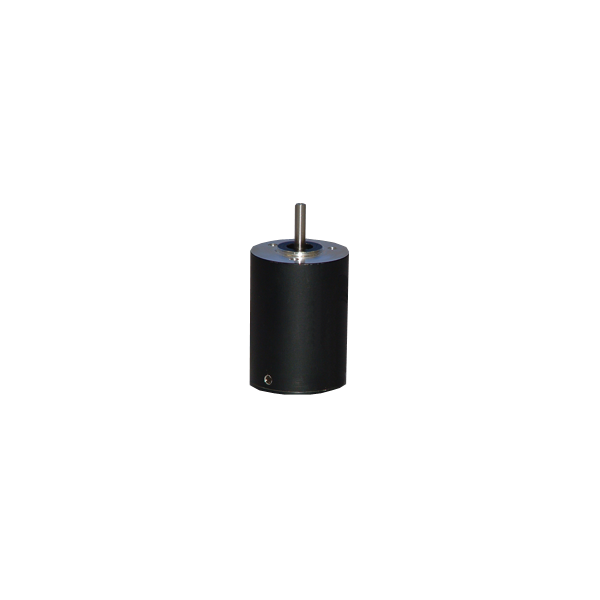

The BLWR11 Series Brushless DC Motors come in a compact package with high power density. These motors are cost effective solutions to many velocity control applications. The star wound motor comes in a standard 8-lead configuration. We can also customize the winding to perfectly match your voltage, current, and maximum operating speed. Special shaft modifications, cables and connectors are also available upon request.

  • 28mm Round Body
  • Compact Size and Power Density
  • Long Life and Highly Reliable
  • Cost-Effective Replacement for Brush DC Motors
  • Can be Customized for
    • Maximum Speed
    • Winding Current
    • Shaft Options
    • Cables and Connectors
  • RoHS Compliant

3D PDF

.STEP File (.RAR File)

Spec Sheet (PDF)

CE Compliant

RoHS Compliant
