BLWR111D-24V-10000
| Rated Voltage (V) | 24 |
|---|---|
| Rated Power (Watts) | 15 |
| Rated Torque (oz-in) | 2 |
| Rated Speed (RPM) | 10000 |
| Torque Constant (oz-in/A) | 2.27 |
| Back EMF Voltage (V/kRPM) | 1.875 |
| Line-to-Line Resistance (ohm) | 4.63 |
| Line-to-Line Inductance (mH) | 1.69 |
| Rotor Inertia (oz-in-sec2) | 0.0000300 |
| "L" Motor Length (mm) | 40 |
| Weight (lbs) | 0.18 |
Interested in large quantity discount?
Product Information

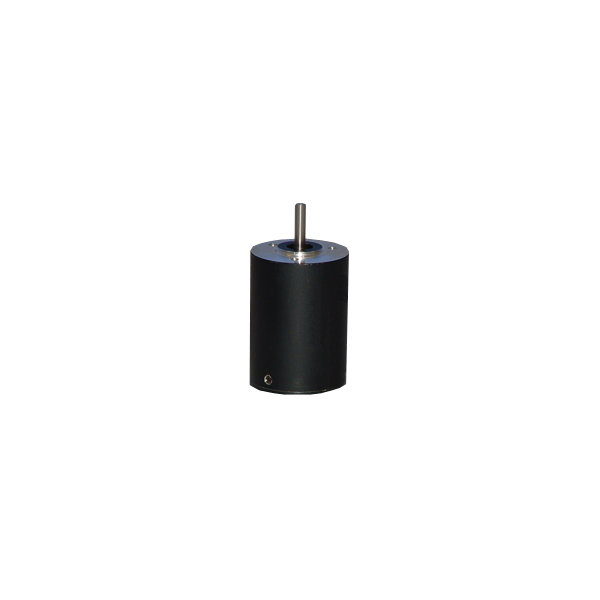

The BLWR11 Series Brushless DC Motors come in a compact package with high power density. These motors are cost effective solutions to many velocity control applications. The star wound motor comes in a standard 8-lead configuration. We can also customize the winding to perfectly match your voltage, current, and maximum operating speed. Special shaft modifications, cables and connectors are also available upon request.
- 28mm Round Body
- Compact Size and Power Density
- Long Life and Highly Reliable
- Cost-Effective Replacement for Brush DC Motors
- Can be Customized for
- Maximum Speed
- Winding Current
- Shaft Options
- Cables and Connectors
- RoHS Compliant
