BLY65343S-48V-3200
| Rated Voltage (V) | 48 |
|---|---|
| Rated Power (Watts) | 470 |
| Rated Torque (oz-in) | 198.6 |
| Rated Speed (RPM) | 3200 |
| Torque Constant (oz-in/A) | 17 |
| Line-to-Line Resistance (ohm) | 0.18 |
| Line-to-Line Inductance (mH) | 0.6 |
| Rotor Inertia (oz-in-sec2) | 0.0226 |
| Weight (lbs) | 5.73 |
| Lead Time | Typ 90 Days |
Interested in large quantity discount?
Product Information

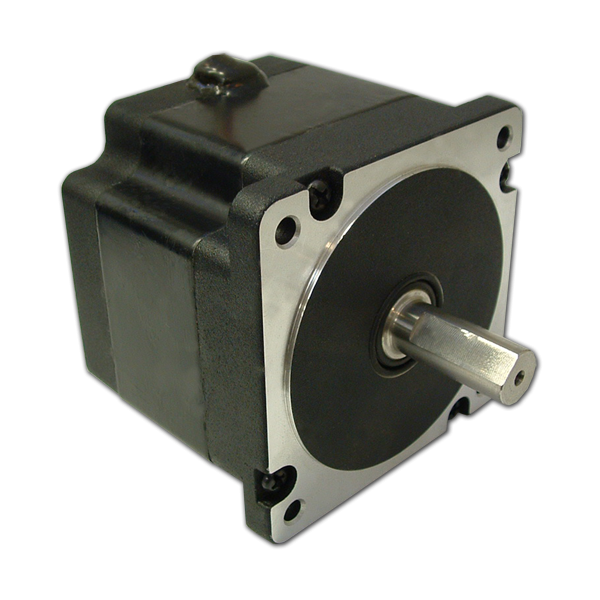

The powerful BLY6534 Series are NEMA 34 Brushless DC Motors that IP65 rated which meet the splash-proof requirements for most applications. The sealed shafts further protect the motor, which in turn provides for longer life cycles. These square-bodied motors have a square-mounting flange, making them easy to install. The popular BLY6534 series motors are available with 198.6 ounce-inches of torque, and offer a conduit box as standard. Customization to perfectly match a specific voltage, current, and maximum operating speed, as well as special shaft modifications, cables and connectors, is available.
- NEMA Size 34 BLDC Motors
- IP65 Rating, Sealed Shaft
- Complete Protection from Dust Particles
- Can be Subjected to Moist or Humid Environments
- Compact Size and Power Density
- Cost-Effective Solution
- Long Life and Highly Reliable
- Affordable Replacement For Brush DC Motors
- Can be Customized for
- Maximum Speed
- Winding Current
- Shaft Options
- Cables and Connectors
- CE Certified and RoHS Compliant
