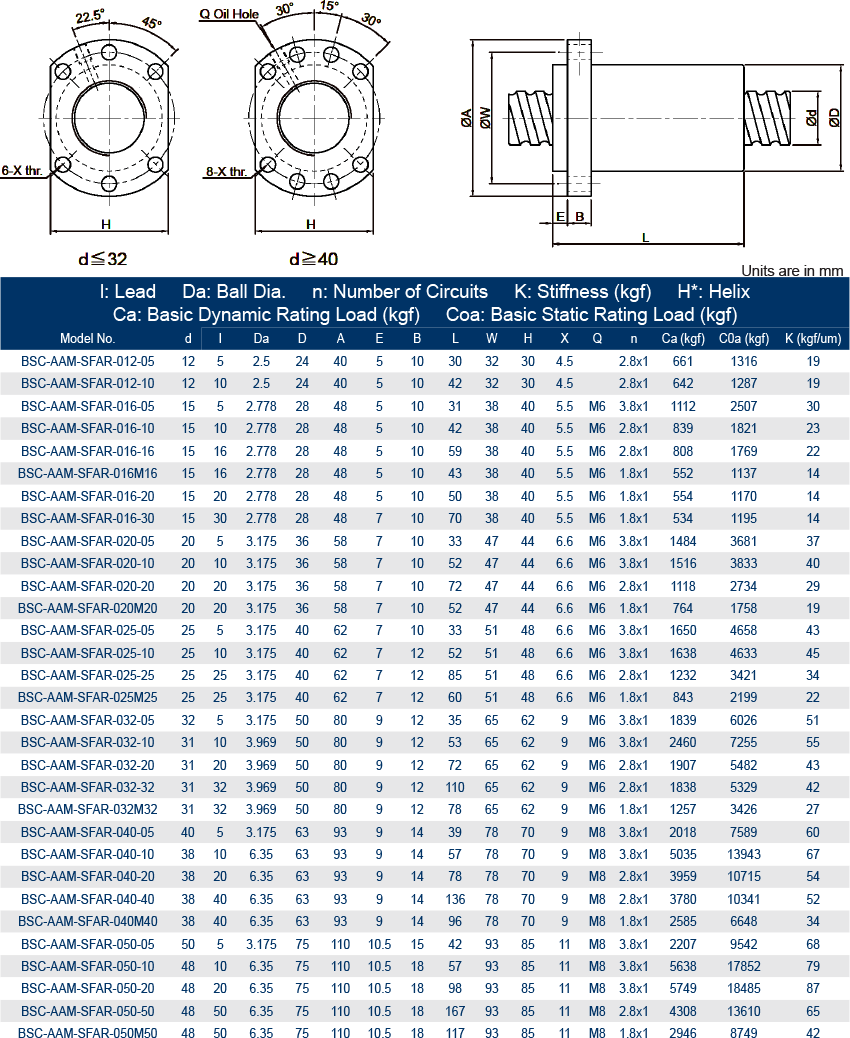

BSC-AAM-SFAR-012-05-500
| Screw Length | 500 |
|---|---|
| Helix | Right |
| d | 12 |
| I | 5 |
| D | 24 |
| A | 40 |
| B | 10 |
| L | 30 |
| W | 32 |
| H | 30 |
| X | 4.5 |
| Q | - |
| n | 2.8x1 |
| Ca | 661 |
| Coa | 1316 |
| Screw Diameter | 12 |
| Lead Time | Typ 51 Days |
Interested in large quantity discount?
Product Information
The BSC-AAM-SFAR-012-05-500 Series Ball Screws have a diameter of 12mm with a lead of 5mm. The assembly provides a dynamic force up to 661 Kgf and a static force up to 1316 Kgf. The maximum length for this screw is 500mm. All ball screws listed are cut to length. End machining available. Submit your drawing to [email protected]
For assistance in selecting the appropriate ball screw for your application, please fill out our Ball Screw Application Sheet and submit it to our sales department.
- 12mm Diameter with a 5mm Lead
- Dynamic Force: Up to 661 Kgf
- Static Load: Up to 1316 Kgf
- Screw Length 500mm
- Custom Screw Sizes Available
- Standard is C7 and C10 Accuracy Grades
- Other Accuracies and Preloads Available Upon Request
