BSC-AAM-SFKR-008-01-RC7-P1-1000

BSC-AAM-SFKR-008-01-RC7-P1-1000

BSC-AAM-SFKR-008-02-RC7-P1-400

BSC-AAM-SFKR-008-02-RC7-P1-400

BSC-AAM-SFKR-008-02-RC7-P1-250

1pc Price:
$149.00
Quantity Discount
  • Buy 10 for $142.35 each and save 4%
  • Buy 25 for $135.01 each and save 9%
  • Buy 50 for $130.74 each and save 12%
  • Buy 100 for $127.08 each and save 15%
Inventory:
5
More Information
Screw Length 250
Helix Right
d 8
I 2
D 14
A 27
B 4
L 18
W 21
H 18
X 3.4
Y -
Z -
Q -
n 1x3
Ca 222
C0a 458
Interested in large quantity discount?

Product Information

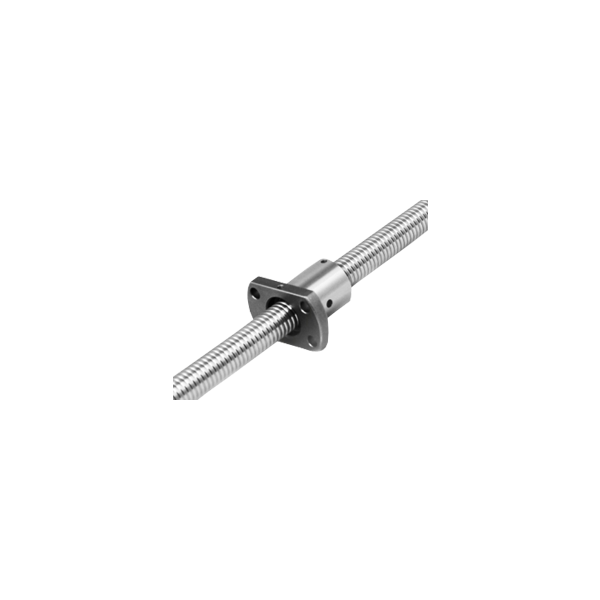

The SFKx-008 Series Ball Screws have a diameter of 8mm with a lead ranging from 1mm to 2.5mm. The assembly provides a dynamic force up to 222 Kgf and a static force up to 458 Kgf. The maximum length for this screw is 1,000mm. All ball screws listed are cut to length. End machining available. Submit your drawing to [email protected]

For assistance in selecting the appropriate ball screw for your application, please fill out our Ball Screw Application Sheet and submit it to our sales department.

  • 8mm Diameter with 1mm-2.5mm Lead
  • Dynamic Force: Up to 222 Kgf
  • Static Load: Up to 458 Kgf
  • Screw Lengths Up to 1,000mm
  • Custom Screw Sizes Available
  • Standard is C7 Accuracy and P1 Preload
  • Other Accuracies and Preloads Available Upon Request

3D PDF

Spec Sheet (PDF)

Catalog
