BSC-AAM-SFVR-063-10-RC7-P1-1000
| Screw Length | 1000 |
|---|---|
| Helix | Right |
| d | 63 |
| I | 10 |
| D | 108 |
| A | 154 |
| B | 22 |
| L | 105 |
| W | 130 |
| H | 110 |
| X | 14 |
| Y | 20 |
| Z | 13 |
| Q | M8 |
| n | 4.8x1 |
| Ca | 7860 |
| Coa | 30430 |
| Screw Diameter | 63 |
| Lead Time | Typ 51 Days |
Interested in large quantity discount?
Product Information

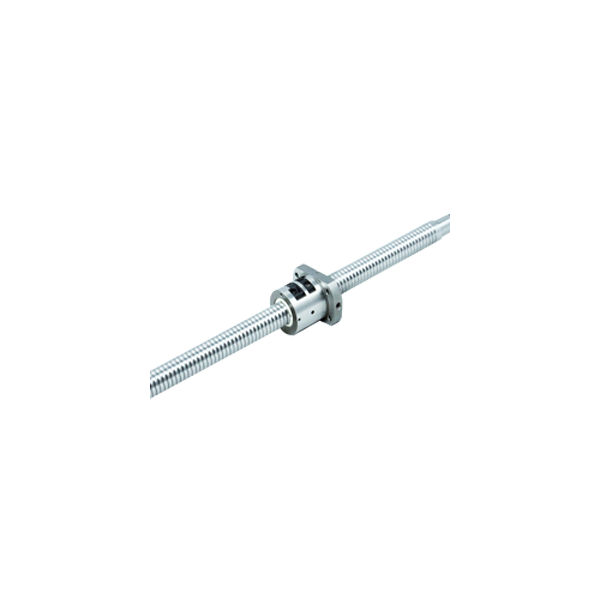

The SFVx-063 Series Ball Screws have a diameter of 63mm with leads ranging from 10mm to 20mm. The assembly provides a dynamic force up to 8,162 Kgf and a static force up to 24,741 Kgf. The maximum length for this screw is 7,000mm. All ball screws listed are cut to length. End machining available. Submit your drawing to [email protected]
For assistance in selecting the appropriate ball screw for your application, please fill out our Ball Screw Application Sheet and submit it to our sales department.
- 63mm Diameter with a 10mm-20mm Lead
- Dynamic Force: Up to 8,162 Kgf
- Static Load: Up to 24,741 Kgf
- Screw Lengths Up to 7,000mm
- Custom Screw Sizes Available
- Standard is C7 Accuracy and P1 Preload
- Other Accuracies and Preloads available upon request
