BSC-AAM-SFVR-050-05-RC7-P1-2250

BSC-AAM-SFVR-050-05-RC7-P1-2250

BSC-AAM-SFVR-063-10-RC7-P1-1000

BSC-AAM-SFVR-063-10-RC7-P1-1000

BSC-AAM-SFVR-063-10-RC7-P1-500

1pc Price:
$848.00
Quantity Discount
  • Buy 10 for $658.41 each and save 22%
  • Buy 25 for $533.54 each and save 37%
  • Buy 50 for $490.77 each and save 42%
  • Buy 100 for $480.41 each and save 43%
Inventory:
More Information
Screw Length 500
Helix Right
d 63
I 10
D 108
A 154
B 22
L 105
W 130
H 110
X 14
Y 20
Z 13
Q M8
n 4.8x1
Ca 7860
Coa 30430
Screw Diameter 63
Interested in large quantity discount?

Product Information

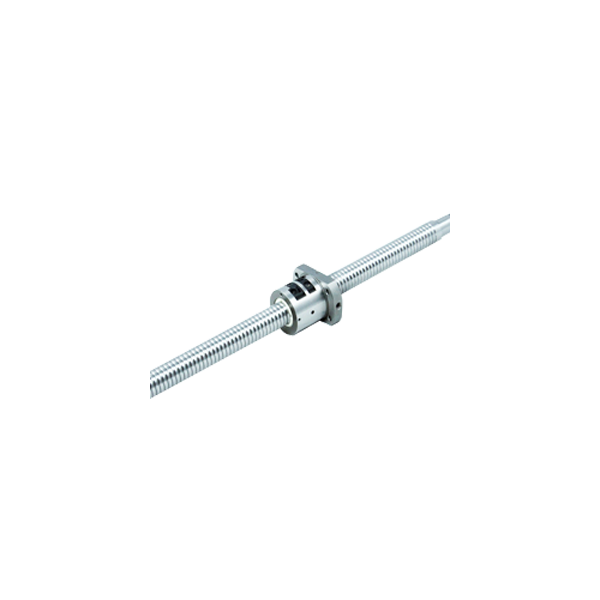

The SFVx-063 Series Ball Screws have a diameter of 63mm with leads ranging from 10mm to 20mm. The assembly provides a dynamic force up to 8,162 Kgf and a static force up to 24,741 Kgf. The maximum length for this screw is 7,000mm. All ball screws listed are cut to length. End machining available. Submit your drawing to sales@anaheimautomation.com

For assistance in selecting the appropriate ball screw for your application, please fill out our Ball Screw Application Sheet and submit it to our sales department.

  • 63mm Diameter with a 10mm-20mm Lead
  • Dynamic Force: Up to 8,162 Kgf
  • Static Load: Up to 24,741 Kgf
  • Screw Lengths Up to 7,000mm
  • Custom Screw Sizes Available
  • Standard is C7 Accuracy and P1 Preload
  • Other Accuracies and Preloads available upon request
