BSC-AAM-SYAR-016-32-RC7-P1-1500
| Screw Length | 1500 |
|---|---|
| Helix | Right |
| d | 16 |
| I | 32 |
| D | 32 |
| A | 53 |
| E | 10.1 |
| B | 10 |
| L | 42.5 |
| W | 42 |
| H | 34 |
| X | 4.5 |
| Q | M6 |
| n | 0.8x2 |
| Ca | 493 |
| Coa | 1116 |
Interested in large quantity discount?
Product Information

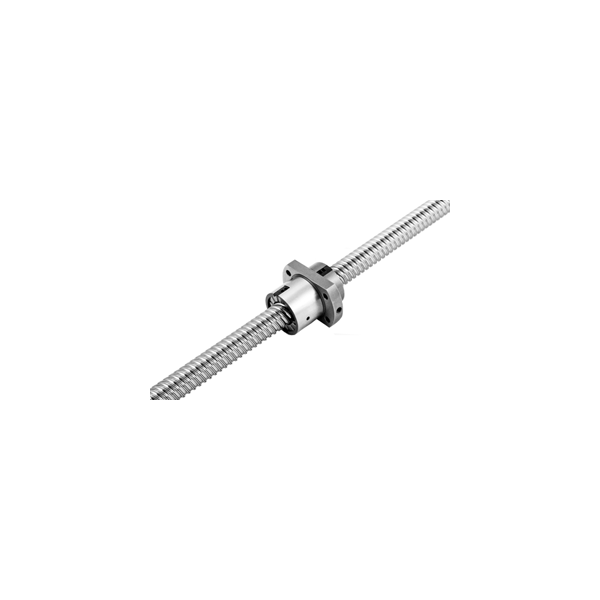

The SYAx 016 Series Ball Screws have a diameter of 16mm with a 16 or 32mm lead. The assembly provides a dynamic force up to 1,073 Kgf and a static force up to 2,551 Kgf. The maximum length for this screw is 3,000mm. All ball screws listed are cut to length. End machining available. Submit your drawing to sales@anaheimautomation.com
For assistance in selecting the appropriate ball screw for your application, please fill out our Ball Screw Application Sheet and submit it to our sales department. Note: BSC-AAM-SFYx are LTSOH (Limited to Stock on Hand).
- 16mm Diameter with a 16 or 32mm Lead
- Dynamic Force: Up to 1,073 Kgf
- Static Load: Up to 2,551 Kgf
- Screw Lengths Up to 3,000mm
- Custom Screw Sizes Available
- Standard is C7 Accuracy and P1 Preload
- Other Accuracies and Preloads Available Upon Request
