BSC-AAM-SYAR-020-20-RC7-P1-1000
| Screw Length | 1000 |
|---|---|
| Helix | Right |
| d | 20 |
| I | 20 |
| D | 39 |
| A | 62 |
| E | 13 |
| B | 10 |
| L | 52 |
| W | 50 |
| H | 41 |
| X | 5.5 |
| Q | M6 |
| n | 1.8x2 |
| Ca | 1387 |
| Coa | 3515 |
Interested in large quantity discount?
Product Information

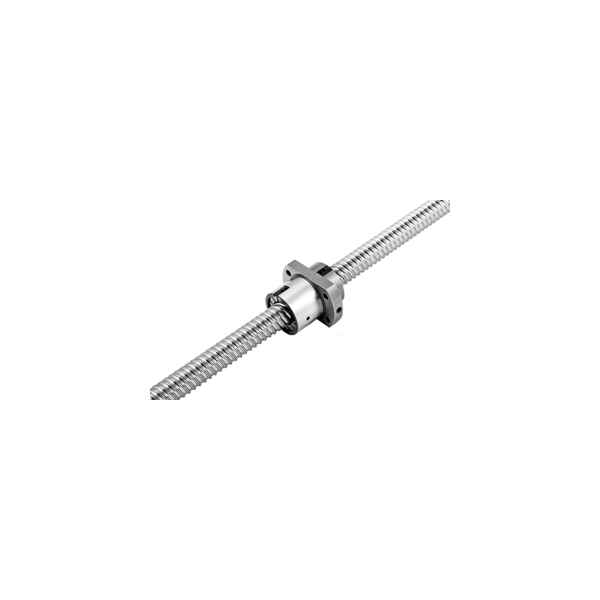

The SYAx 020 Series Ball Screws have a diameter of 20mm with a 40mm lead. The assembly provides a dynamic force up to 1,387 Kgf and a static force up to 3,515 Kgf. The maximum length for this screw is 3,000mm. All ball screws listed are cut to length. End machining available. Submit your drawing to sales@anaheimautomation.com
For assistance in selecting the appropriate ball screw for your application, please fill out our Ball Screw Application Sheet and submit it to our sales department. Note: BSC-AAM-SFYx are LTSOH (Limited to Stock on Hand).
- 20mm Diameter with a 20 or 40mm Lead
- Dynamic Force: Up to 1,387 Kgf
- Static Load: Up to 3,515 Kgf
- Screw Lengths Up to 3,000mm
- Custom Screw Sizes Available
- Standard is C7 Accuracy and P1 Preload
- Other Accuracies and Preloads Available Upon Request
