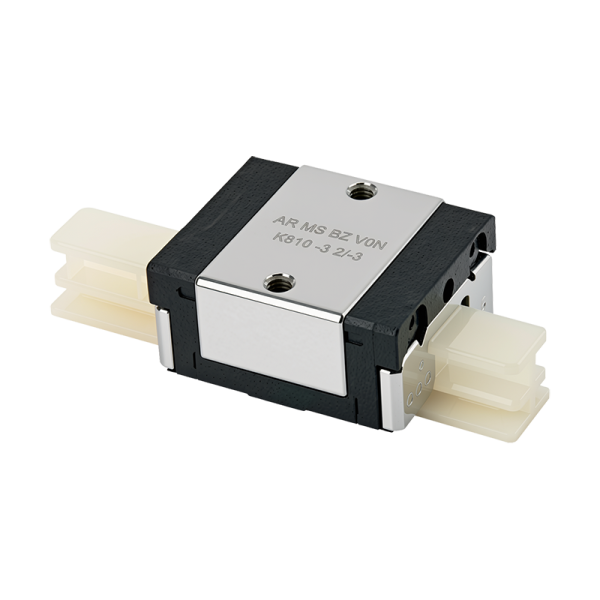

CPC-AR15MSBZV0N
| H | 24 |
|---|---|
| W2 | 9.5 |
| W | 34 |
| L | 40.8 |
| L1 | 24.2 |
| h2 | 20.1 |
| P1 | - |
| P2 | 26 |
| E | 4.5 |
| M x g2 | M4x7 |
| M1 | - |
| T | 6 |
| C | 6.4 |
| C0 | 10.8 |
| Mr0 | 80 |
| Mp0 | 40 |
| My0 | 40 |
| Block Weight (lbs) | 0.23 |
Interested in large quantity discount?
Product Information
The CPC-AR15 Series Linear Guide Bearing Blocks are matched for the CPC-AR15N Series Rail. They are ideal for dynamic loads up to 6.4 kN (1438 lbs) and static loads up to 10.8 kN (2427 lbs) The design incorporates four rows of re-circulating steel balls arranged in the O-type design with a 45° contact angle with the raceway. The O-type design improves the rigidity of the track rail under moment and torsion forces. This series offers improved performance with larger diameter steel balls and an increased number of steel balls, which provides higher load capacities. Available in three lengths, (Short, Standard, or Long), two end seals options (Standard or Reinforced), and three preload classes (Standard, Light, or Medium). Typically in stock in our Anaheim, CA warehouse.
For Linear Guide Accessories, click here.
CPC-AR15 bearing blocks are LTSOH (Limited to Stock on Hand). Please use CPC-ARC15 series blocks for new designs.
- Size: Fits 15mm Linear Guide Rail
- Dynamic Load: 6.4kN
- Static Load: 10.8kN
- Rail Lengths Up to 1000mm
- Custom Rail Sizes Available
- Matched Bearing Blocks
- End Seal: Standard with Lubrication Pad
- Pre-Load: Standard
CPC-xRC15
.png)
.png)
