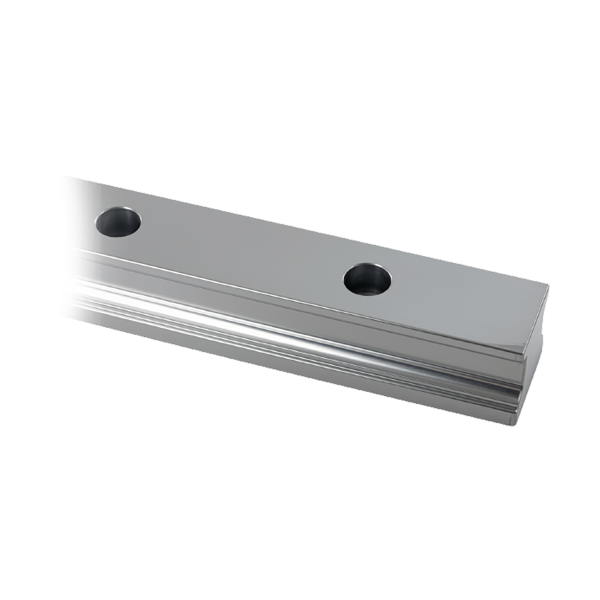

CPC-AR35N-1300-10-10
| W1 | 34 |
|---|---|
| H1 | 32 |
| P | 80 |
| D | 14 |
| d1 | 9 |
| g1 | 12 |
| R1 | 1300 |
| R2 | 10 |
| R3 | 10 |
| Rail Weight (lbs) | 19.46 |
Interested in large quantity discount?
Product Information
The CPC-ARC35 Series Linear Guide Bearing Blocks are matched for the CPC-AR35N Rail. They are ideal for dynamic loads over 45.9 kN (10,318 lbs) and static loads over 106.5 kN (23,942 lbs). The design incorporates four rows of re-circulating steel balls arranged in the O-type design with a 45° contact angle with the raceway. The O-type design improves the rigidity of the track rail under moment and torsion forces. This series offers improved performance with larger diameter and an increased number of steel balls, which provides higher load capacities. Available in two lengths, (Standard or Long), two end seals options (Standard or Reinforced), and three preload classes (Standard, Light, or Medium). Typically in stock in our Anaheim, CA warehouse. For rail lengths longer than the full continuous length specification, rails can be butt-jointed to achieve the desired length. Please contact us for more information.
- Size: 34mm Linear Guide Rail
- Dynamic Load: Up to 10,318 lbs.
- Static Load: Up to 23,942 lbs.
- Continuous Rail Lengths Up to 4000mm
- Custom Rail Sizes Available
- Matched Bearing Blocks
- End-Seal Options: Standard or Reinforced
- Pre-Load: Clearance, Standard, or Light
.png)
.png)
Spec Sheet (PDF)
