CPC-AR45N-1100-25-25

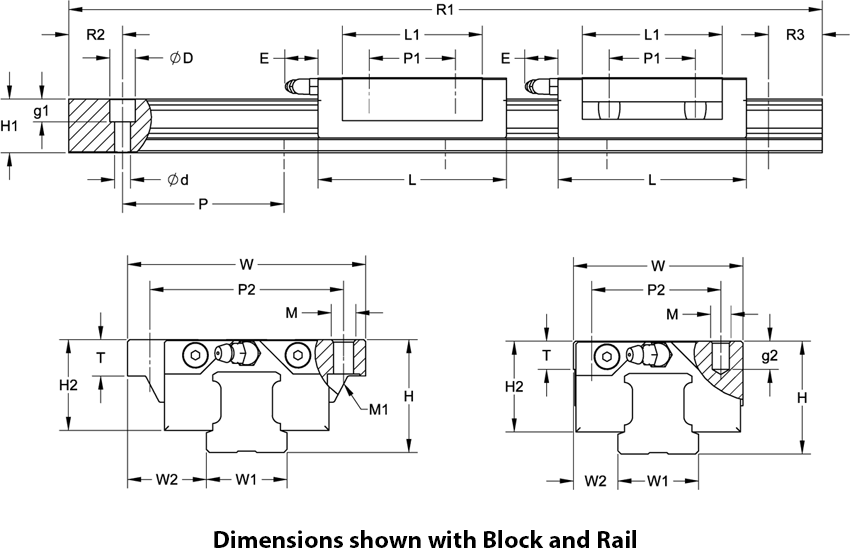

| W1 | 45 |
|---|---|
| H1 | 39 |
| P | 105 |
| D | 20 |
| d1 | 14 |
| g1 | 17 |
| R1 | 1100 |
| R2 | 25 |
| R3 | 25 |
| Rail Weight (lbs) | 25.54 |
| Lead Time | Typ 45 Days |
Interested in large quantity discount?
Product Information

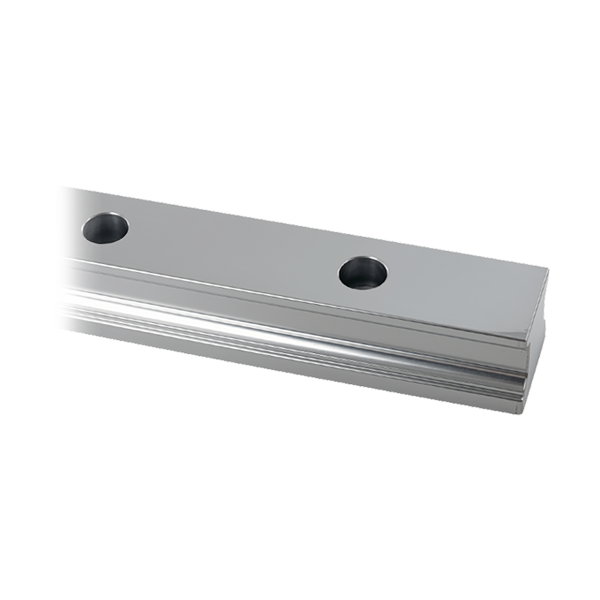

The CPC-AR45N Series Rails are matched for the CPC-ARC45 Series Linear Guide Bearing Blocks. These rails are available in custom lengths, and continuous lengths of up to 1100mm. For rail lengths longer than the full continuous length specification, rails can be butt-jointed to achieve the desired length. Typically, in stock in our Anaheim, CA warehouse. Please contact us for more information. Bearing Blocks sold separately.
- Size: 45mm Linear Guide Rail
- Continuous Rail Lengths Up to 1100mm
- Custom Rail Sizes Available
- Matched Bearing Blocks
- End-Seal Options: Standard or Reinforced
- Pre-Load: Clearance, Standard, or Light
