CPC-MR7WNSSV0N-100-5-5
| H | 9 |
|---|---|
| W2 | 5.5 |
| W | 25 |
| L | 31.9 |
| L1 | 21.2 |
| h2 | 7.1 |
| P | 30 |
| P1 | 10 |
| P2 | 19 |
| D x d x g1 | 6 x 3.5 x 3.5 |
| M x g2 | M3x3 |
| S | 1.9 |
| T | 3.2 |
| Width | 14 |
| Length | 100 |
| C | 1.2 |
| C0 | 2.1 |
| Mr0 | 15 |
| Mp0 | 7.3 |
| My0 | 7.3 |
| Block Weight (lbs) | 0.042 |
| Rail Weight (lbs) | 0.1138 |
Interested in large quantity discount?
Product Information

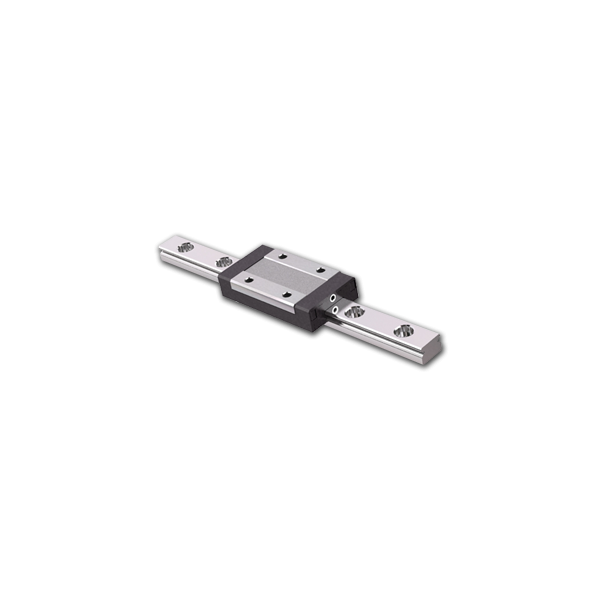

The CPC-MR7 series rail provides precision, rigidity, and quality all nestled into one tiny package. Don't let the size fool you, the rail and block combination is ideal for dynamic loads up to 1,570 N (353 lbs) and static loads up to 3,140 N (706 lbs). The design incorporates two rows of re-circulating steel balls arranged in the O-type design with a 45° contact angle with the raceway. The O-type design improves the rigidity of the track rail under moment and torsion forces providing higher load capacities. The CPC-MR7 linear guide rails and blocks offered in standard lengths, or a customer may request a specific length. For rail lengths longer than the full continuous length specification, rails can be butt-jointed to achieve the desired length. Please contact us for more information.
For Linear Guide Accessories, click here.
Note: When ordering a full length Rail (1000L), total length Ranges from + 10mm to + 40mm.
- Size: 14mm Linear Guide Rail
- Dynamic Load: Up to 1.57 kN
- Static Load: Up to 3.14 kN
- Continuous Rail Lengths Up to 1000mm
- Custom Rail Sizes Available
- Matched Bearing Blocks
- End-Seal Options: Standard or Reinforced
- Pre-Load: Clearance, Standard, or Light
