DPD72002 Stepper Motor Driver with AC Input

DPD72002

DPD72001XCE

1pc Price:
$1,490.00
Quantity Discount
  • Buy 10 for $1,010.17 each and save 32%
  • Buy 25 for $777.05 each and save 48%
  • Buy 50 for $640.25 each and save 57%
  • Buy 100 for $551.00 each and save 63%
Inventory:
2
More Information
Current Range (A) 1.0 - 7.0
Voltage Requirement 90 - 265VAC
Steps per Revolution 200, 400
Pulse Generator / Controller -
Recommended Transformer Integrated
Interested in large quantity discount?

Product Information

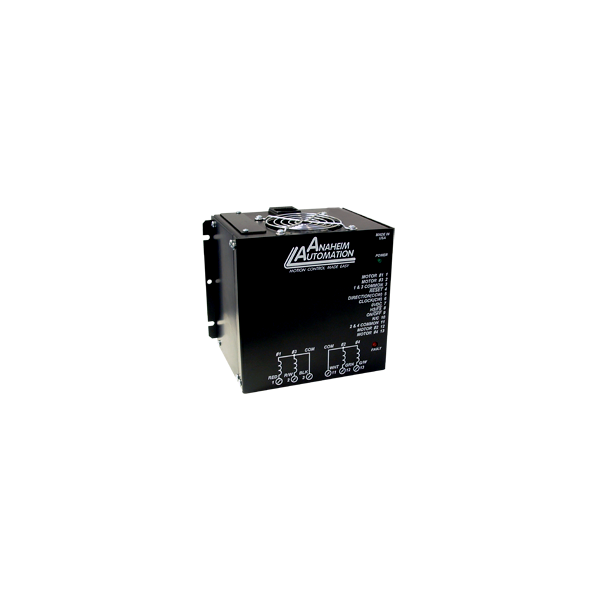

The DPD72001 is a step motor Driver Pack that can drive motors rated from 1.0 to 7.0 amps/phase (unipolar rating). DPD72001 can handle 6-lead and 8-lead motors. This Driver Pack features a unipolar bilevel (or dual voltage) drive technique with short/open circuit protection (with a Fault LED. Outstanding motor performance is provided by means of a Bilevel Drive technique. The DPD72001's enclosed construction is ideal for OEM customers because of it's cost-effective design. Matched components make selection error-free. DPD72001XCE is CE Certified.
For quick and easy hook-ups, see Accessories for shielded motor cable and other motor options. See DPD72002 for the two-axis version. For compatible high-torque stepper motors, consider our popular 23Y, 34Y and 42Y Series. For standard torque (round-bodied motors), see 23D, 23W, 34D, and 42D Series.

  • Integrated BLD75 driver, 300W Power Supply, and Cooling Fan
  • Unipolar Operation
  • Bilevel Driver Operation
  • 105-125 VAC Input Option (DPD72001XCE, 90-265 VAC)
  • 10 Amps per Phase Operating Current (kick current)
  • 7 Amps per Phase Standstill Current
  • 65 Volt Operation
  • Short and Open Circuit Protection
  • Motor On/Off Input
  • Half-Step and Full-Step Operations
  • Detachable Terminal Block
  • CE Certified (DPD72001XCE) and RoHS Compliant

3D PDF

.STEP File (.RAR File)

User Manual (PDF)

CE Certified
