DPD72002
| Current Range (A) | 1.0 - 7.0 |
|---|---|
| Voltage Requirement | 105 - 125 VAC |
| Steps per Revolution | 200, 400 |
| Pulse Generator / Controller | None |
| Recommended Transformer | Integrated |
Interested in large quantity discount?
Product Information

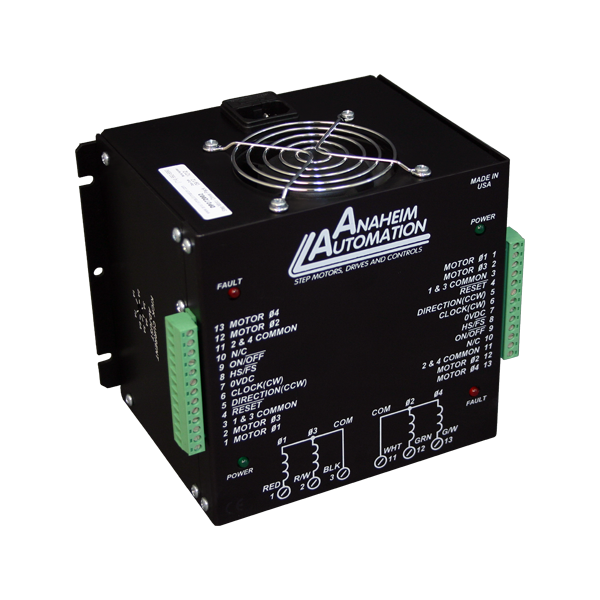

The DPD72002 is a step motor Driver Pack that can drive motors rated from 1.0 to 7.0 amps/phase (unipolar rating). The DPD72002 can handle two 6-lead or 8-lead motors. This Driver Pack features a unipolar bilevel (or dual voltage) drive technique with short/open circuit protection (with a Fault LED. Outstanding motor performance is provided by means of a Bilevel Drive technique. The DPD72002's enclosed construction is ideal for OEM because of it's cost-effective design. The DPD72002 Driver Pack containing two BLD75 drivers, power supply and cooling fan, is a hassle-free choice because the matched components take the guesswork out of your selection. DPD72002XCE is CE Certified.
For quick and easy hook-ups, see Accessories for shielded motor cable and other options. For compatible high-torque stepper motors, consider our popular 23Y, 24Y, 34Y and 42Y Series. For standard torque (round-bodied motors), see 23D, 23W, 34D, and 42D Series.
- Two Integrated BLD75 drivers, 300W Power Supply, and Cooling Fan
- Unipolar Operation
- Bilevel Driver Operation
- 105-125 VAC Input Option (DPD72002XCE, 90-265 VAC)
- 10 Amps per Phase Operating Current (kick current)
- 7 Amps per Phase Standstill Current
- 65 Volt Operation
- Short and Open Circuit Protection
- Motor On/Off Input
- Half-Step and Full-Step Operations
- Detachable Terminal Block
- CE Certified (DPD72002XCE) and RoHS Compliant
.png)
.png)
.png)
_copy.png)
.png)
