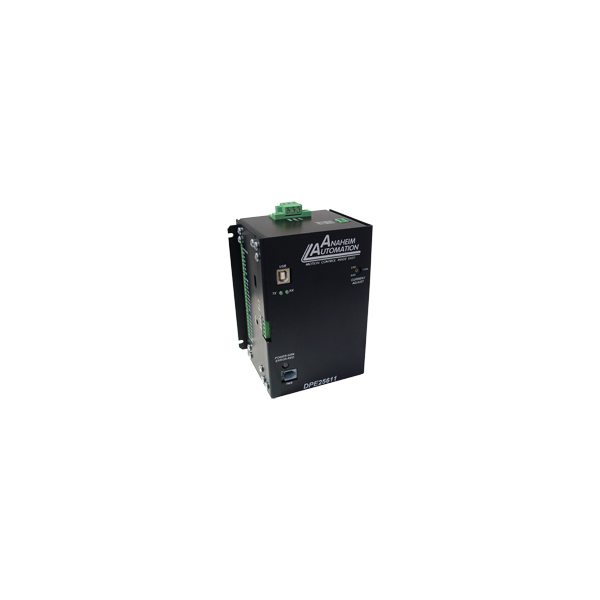

DPE25611
| # of Axes | 1 |
|---|---|
| Current Range (A) | 0.5 - 2.5 |
| Steps per Revolution | 1600 |
| Smart Features | USB SMC60 Controller |
| Input Voltage | 105-125 VAC |
| Internal Power Supply (Watts) | 25 |
| Recommended Power Supply | N/A |
Interested in large quantity discount?
Product Information
The DPE25611 is a single-axis 2.5A bipolar microstep driver/controller, containing 2 Kbytes of nonvolatile stored programming space, quadrature encoder feedback, and a 24W power supply, all enclosed in a package. It provides flexible, independent control of bipolar stepper motors with a current range from 0.5 to 2.5 Amp/phase with a microstepping resolution of 1,600 steps per revolution from a computer or any machine controller with a USB port. It is also capable of standalone operation, making it an embedded machine controller. The easy to use Windows software, SMC60WIN, can be used to directly control motion and to program the DPE25611. The DPE25611 also has the ability for real time functions.
- Single-Axis Driver Pack with Programmable Controller
- Contains a Microstep Driver with an Output Capacity of 0.5 to 2.5 Amps
- Contains a Programmable Controller with 2 Kbytes of Non-Volatile Stored Programming Space and Quadrature Encoder Feedback
- Contains a 24 Watt Power Supply Packaged in an Enclosure
- With 40 Commands, Driver Pack Provides Flexible, Independent Control of Stepper Motors From Computers, or any Machine Controller with a Serial or USB port
The DPE25611 has 40 easy-to-remember commands for direct movement of the stepper motor, and communicates via a USB data bus. This driver communicates with the DY50611 through a virtual comm port from the PC. This driver will turn any USB port into a virtual comm port, thus enabling simple serial programs to send information to the DPE25611. To use the SMC60WIN software, the virtual comport driver must be installed. Special functions of the controller include 8 programmable open collector outputs and 6 TTL, CMOS and 24V compatible inputs, a quadrature encoder input with the ability to auto-correct, an analog input to control either maximum speed or absolute position, registration mark indexing during a slew command, an output that will trigger during an index command at an absolute position, and a thumbwheel input for indexing a motor. The DPE25611 can be powered from 100-240 VAC, 50/60Hz.
