DPF72004
| Current Range (A) | 1.0 - 7.0 |
|---|---|
| Voltage Requirement | 105 - 125 VAC |
| Steps per Revolution | 200, 400 |
| Pulse Generator / Controller | - |
| Recommended Transformer | Integrated |
Interested in large quantity discount?
Product Information

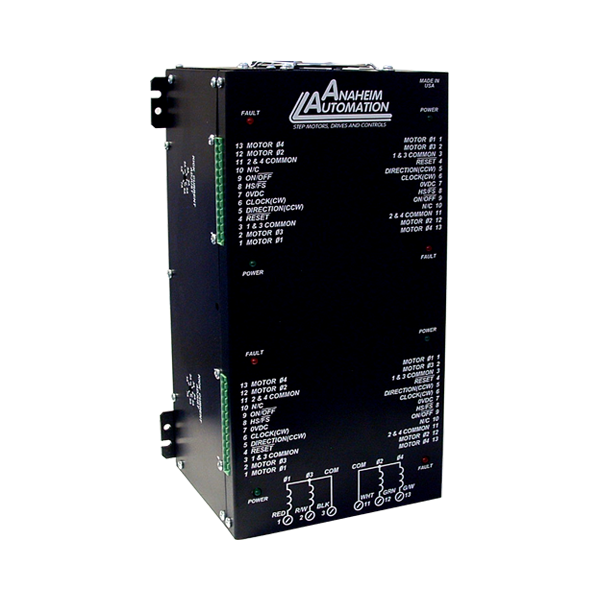

The DPF72004 Driver Pack is designed to operate 4-phase step motors rated at 1 - 7 amps/phase. These Driver Packs contain four BLD75 Step Motor Drivers, two 300 Watt transformers, and a cooling fan. Outstanding motor performance is provided by means of a Bilevel Drive technique. This multi-axis Driver make it an economical choice, because the cost per axis is significantly reduced. For higher capacity power supply, see the DPK Series. DPF72004XCE is CE Certified.
For quick and easy hook-ups, see Accessories for shielded motor cable and other motor options. For compatible high-torque stepper motors, consider our popular 23Y, 24Y, 34Y and 42Y series. For standard torque (round-bodied motors), see 23D, 23W, 34D, and 42D series.
- Four-Axis Packages
- Integrated 600 Watt Power Supply
- 10 Amperes/phase Maximum Operating Current
- 7 Amperes/phase Standstill Motor Current
- Half-Step and Full-Step Operation
- Bilevel Drive Operation
- 105 - 125 VAC Input Option (DPF72004XCE, 90 - 265 VAC)
- Unipolar Drive
- No RFI or EMI Problems
- Motor On/Off Input
- TTL/CMOS Compatible Inputs
- Clock and Directional or Dual Clock Operation
- CE Certified and RoHS Compliant
- CE Certified (DPF72004XCE) and RoHS Compliant
