DPS32001
| Current Range (A) | 0.5 - 3.5 |
|---|---|
| Voltage Requirement | 105 - 125/210 - 250 VAC |
| Steps per Revolution | 200, 400 |
| Pulse Generator / Controller | - |
| Recommended Transformer | Integrated |
Interested in large quantity discount?
Product Information

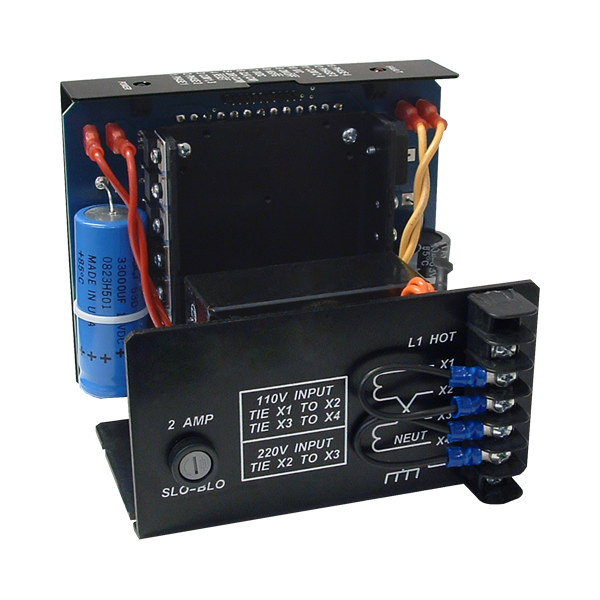

The DPS32001 is a step motor Driver Pack that can drive motors rated from 0.5 to 3.5 amps/phase (unipolar rating). DPS32001 can handle 6-lead and 8-lead motors. This Driver Pack features a unipolar bilevel (or dual voltage) drive technique with short/open circuit protection (with a Fault LED. Outstanding motor performance is provided by means of a Bilevel Drive technique. The DPS32001's open frame construction is ideal for OEM because of it's cost-effective design. This unit is not fan-cooled, therefore, it is advisable to make certain your system has adequate air-flow. Matched components make driver selection error-free.
For quick and easy hook-ups, see Accessories for shielded motor cable and other options. For compatible high-torque stepper motors, consider our popular 23Y and 34Y series. For standard torque (round-bodied motors), see 23W series.
- Bilevel Drive Operation, 0.5-3.5 Amps
- 100 Watt Transformer
- 110/220V Operation
- Short Circuit Protection
- Open Motor Protection
- Fault LED
- 5 Amps/Phase Operating Current
- 3.5 Amps/Phase Output Current, for higher current, see DPD series
- Unipolar Operation
- Half-Step and Full-Step Operation
- Motor On/Off Input
- No RFI or EMI Problems
- TTL/CMOS Compatible Inputs
- CE Certified and RoHS Compliant
.png)
.png)
.png)
.png)
