DPS32001 Stepper Motor Driver with AC Input

DPS32001

MLA05641 Stepper Motor Driver with AC Input

MLA05641

DPS32PS1

1pc Price:
$990.00
Quantity Discount
  • Buy 10 for $660.91 each and save 33%
  • Buy 25 for $495.97 each and save 50%
  • Buy 50 for $408.65 each and save 59%
  • Buy 100 for $351.69 each and save 64%
Inventory:
1
More Information
Current Range (A) 0.5 - 3.5
Voltage Requirement 105 - 125/210 - 250 VAC
Steps per Revolution 200, 400
Pulse Generator / Controller -
Recommended Transformer Integrated
Interested in large quantity discount?

Product Information

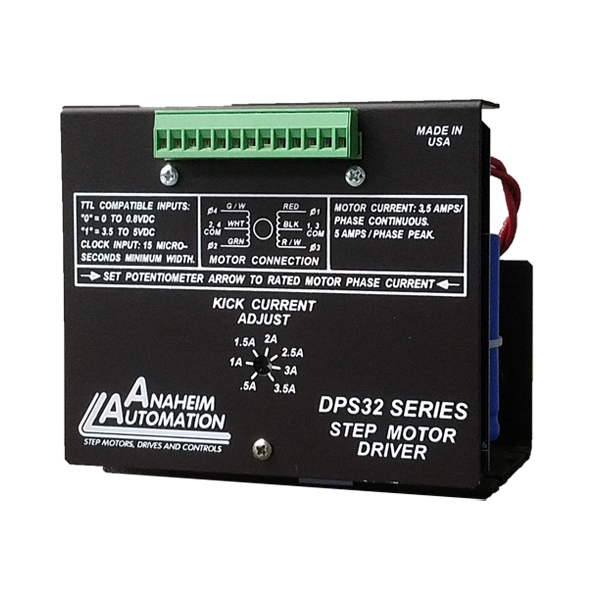

The DPS32PS1 is a step motor Driver Pack that can drive motors rated from 0.5 to 3.5 amps/phase (unipolar rating). DPS32PS1 can handle 6-lead and 8-lead motors. This Driver Pack features a unipolar bilevel (or dual voltage) drive technique with short/open circuit protection (with a Fault LED. Outstanding motor performance is provided by means of a Bilevel Drive technique. The DPS32PS1's open frame construction is ideal for OEM because of it's cost-effective design. Included in this unit is an additional +5VDC regulated and +12Vunregulated supply. Matched components make driver selection error-free.
For quick and easy hook-ups, see Accessories for shielded motor cable and other options. The DPS Series is not fan-cooled, therefore, it is advisable to make certain you systems or panel has adequate air flow. For compatible high-torque stepper motors, consider our popular 23Y and 34Y series. For standard torque (round-bodied motors), see 23W series.

  • Bilevel Drive Operation, 0.5-3.5 Amps
  • 100 Watt Transformer
  • 110/220V Operation
  • Short Circuit Protection
  • Open Motor Protection
  • Fault LED
  • 5 Amps/Phase Operating Current
  • 3.5 Amps/Phase Output Current, for higher current, see DPD series
  • Unipolar Operation
  • Half-Step and Full-Step Operation
  • Motor On/Off Input
  • No RFI or EMI Problems
  • TTL/CMOS Compatible Inputs
  • CE Certified and RoHS Compliant

User Manual (PDF)
