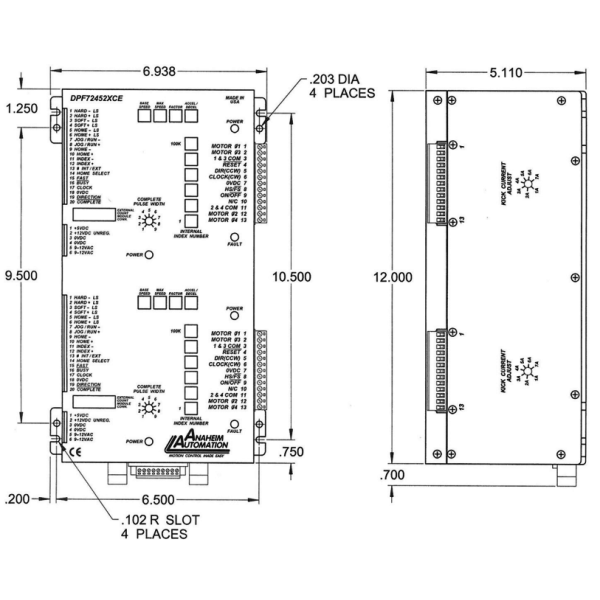

DPF72452
| # of Axes | 2 |
|---|---|
| Current Range (A) | 1.0 - 7.0 |
| Steps per Revolution | 200 - 400 |
| Smart Features | Preset Indexer |
| Input Voltage | 105-125 VAC |
| Internal Power Supply (Watts) | 600 |
| Recommended Power Supply | Integrated |
Interested in large quantity discount?
Product Information
The DPF72452(XCE) Driver Pack contains two bilevel step motor drivers, a manual preset indexer board, a transformer, and a cooling fan. A thumbwheel switch is used to set the index (number of steps or move distance) and manual switches and/or a PLC are used to initiate indexing, homing, or jogging. The manual preset indexer is ideal for applications which are repetitive and require accurate positioning. DPF72452XCE is CE certified.
- Two-Axis Driver Pack with Built-In Manual Preset Indexer, Power Supply, and Cooling Fan
- Drives 4-Phase Stepper Motors Rated for 1-7 Amps per Phase
- Bilevel Drive Technique Prevents EMI, RFI, and Motor Overheating
- Preset Indexer can be operated manually or via PLC
- Functions: Home, Hard and Sift Limit Inputs, Two Homing Modes, Jog/Run, Fast Jog, and Switch-Selectable Base Speed, Max Speed, and Acceleration/Deceleration
User Manual (PDF)
