DPFHP451X250A
| # of Axes | 1 |
|---|---|
| Current Range (A) | 1.4 - 10.0 |
| Steps per Revolution | 200 - 400 |
| Smart Features | Preset Indexer |
| Input Voltage | 90 - 265 VAC |
| Internal Power Supply (Watts) | 500 |
| Recommended Power Supply | Integrated |
Interested in large quantity discount?
Product Information

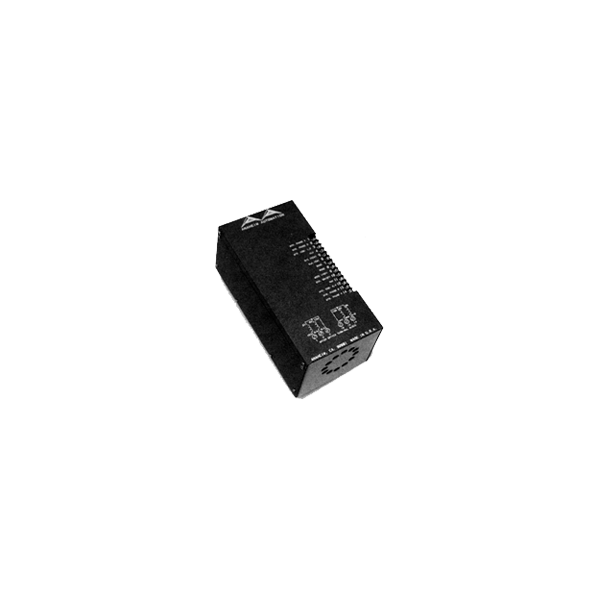

The DPFHP451(X250A) step motor driver pack is designed for motor applications that require very high power output and high start-stop step rates. Outstanding motor performance is achieved by means of an enhanced bilevel or dual-voltage drive technique. This driver pack contains a high-performance driver board, a 500VA transformer, and a dual power supply. It may be used with six or eight lead, size 34 and 42 step motors whose phase current ratings range from 2 to 12.5 Amperes per phase.
- Internal Index Count Switches
- Pulse Rates up to 14,792 pulses per second
- Very High Motor Power Output
- 15 Amps/phase Maximum Operating Current
- 10 Amps/phase Standstill Motor Current
- Dual Voltage Power Supply with 500 VA Transformer
- Bilevel Drive (No RFI or EMI Problems)
- Half-Step and Full-Step Operation
- TTL/CMOS Compatible Inputs
- CW and CCW Index Inputs
