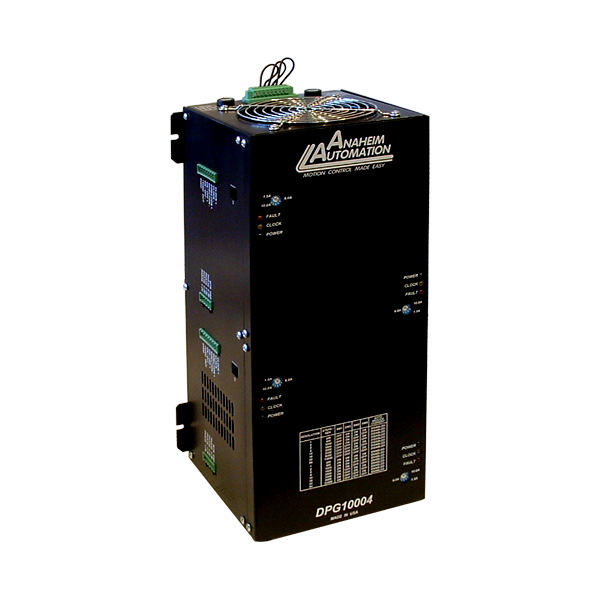

DPG10004

The DPG1004 contains four MBC10641 High-Performance Microstepping Drivers that have an output current capability of 1.5 Amps minimum to 10.0 Amps maximum (Peak Rating) and an intergrated 600W power supply. The inputs are optically isolated with a minimum sourcing of 7.0 mA per input (+5VDC minimum to +24VDC maximum). The clock input is set to receive either positive or negative edge clocks with a maximum frequency of 400KHz. The DPG10004 drivers offer direction control and motor current ON/OFF capabilities. The Reduce Current Enabled automatically reduces motor current to 50% of set value after the last step is made. The drivers have built-in features to indicate power on (Green LED), Clocks being received (Yellow LED) and fault conditions (Red LED). Matched components make driver and power supply selection error-free.
For quick and easy hook-ups, see Accessories for shielded cable and other motor options. For compatible high-torque motors, consider our popular 23Y, 34Y and 42Y series. For standard torque (round-bodied motors), see 23W series.

• Integrated Four MBC10641 Drivers, Power Supply, and Cooling Fan (600 watts)
• 90-265 VAC Input
• Output Current 10.0 Amps Peak Per Driver
• 200 to 12,800 steps/rev (Microstep)
• Short Circuit Protection
• Motor Miss-Wire Detection
• No Minimum Inductance
• Optical Isolation
• Motor On/Off Input
• RoHS Compliant
